Product & Solutions • Dispensers

HA180 Automatic Paint Dispenser

HA180
HA180 with monitor

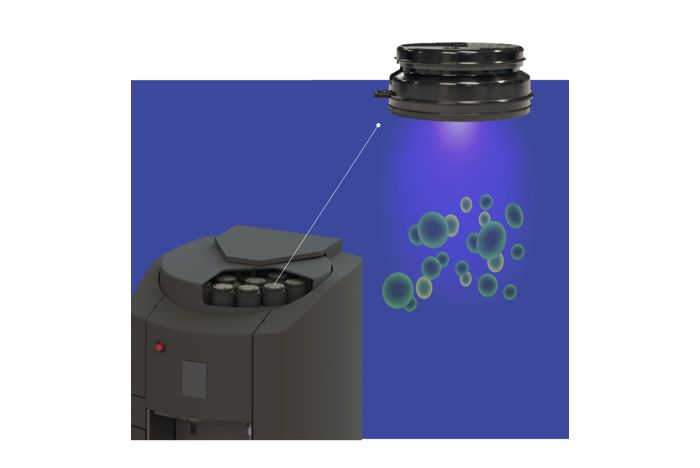

HA180 Refill lid

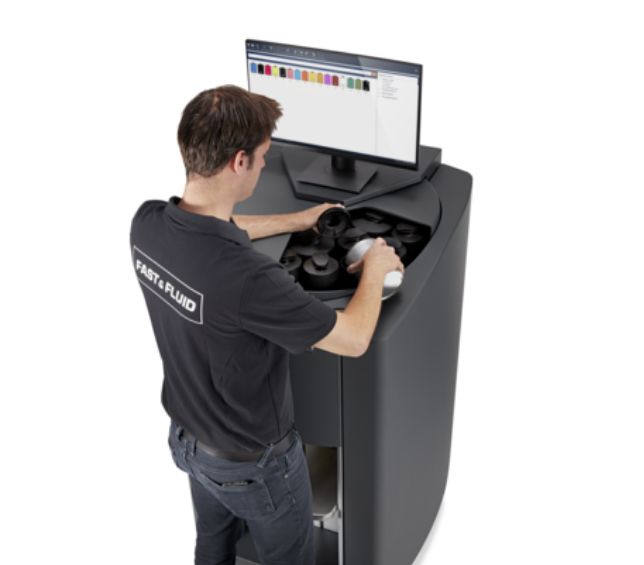

HA180 Easy refilling
HA180 Low refill height
HA180 Full bracket solution
HA180 Brush
HA180
  • Compact design
  • Harbil® ZeroPurge™ piston pump
  • Fast and reliable

The HA180 is perfect for small to medium-sized locations, offering compact efficiency without compromising on canister size, flexibility, can height, or speed. Equipped with ZeroPurge™ piston pumps and AutoDrive™, it delivers reliable, future-ready performance to streamline operations.

Request Information

Product Information Request

"*" indicates required fields

Country

Privacy Policy*
IDEX
Find a Distributor

Features

  • Sequential dispensing
  • Up to 24 canisters (POM) in 2.3/4.6 l
  • ZeroPurge Piston pump technology
  • Universal, solvent and water based colorants
  • Pump size: 40 ml
  • Flow rate: 0.4 – 0.5 l/min
  • Smallest dispense: 0.05 ml
  • Operator display
  • Manual can table (Electric optional)
  • Electric punch (optional)
  • Heating set (optional)
  • HWD 140x81x100 cm

General

  • Automatic sequential
  • Colorants: Solvent based, water based, universal and biocide-free

Canisters

  • Up to 24 canisters
  • Sizes: 2.3/4.6 L
  • Material: Polymeric (POM)

Pump

  • Harbil® ZeroPurge™ Piston pump
  • Size: 40 ml
  • Flow rate: 0.4 – 0.5 l/min
  • Min. Dispense: 0.05 ml
  • Nozzle diameter: 2/4/6 mmStainless steel ball valve
  • Seals material: Teflon / Viton extreme / Viton
  • Zero Purge™
  • Copied calibration – no recalibration required

Nozzles

  • Air tight – integrated nozzle closures
  • Cleaning system: automatic brush & internal flush

Can Table

  • Manual lift
  • Dimensions: 44 x 31 cm
  • Loading height: 36 cm
  • Max. can height: 46 cm

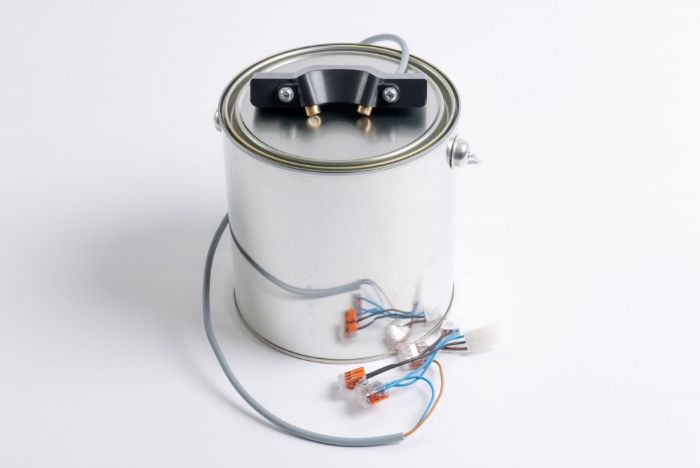

  • Optical can sensor / Short Range sensor (optional)

Dimension & Weight

  • HWD 140 x 81 x 100 cm
  • Filling height: 131 cm
  • Packaging dimensions: 193 x 117x 98 cm
  • Weight (for transport): 180 – 200 kg

Power Supply & Safety

  • 110V +/- 10%, 50Hz/60Hz
  • 230V +/- 10%, 50Hz/60Hz
  • CE certified

Brush

  • Material: polymeric / Stainless steel (optional)

Options

  • Electric punch 46 mm, heating set, large can table plate, different colours (RAL).

When you order options or accessories, they both allow you to personalize your machine to your specifications. Options are factory-installed features and you will find them built in to your machine when it arrives. Accessories are supplied separately and have to be mounted during or after the installation.

Below is a list of the available options & accessories for this product.

options

accessories

Request Information

Product Information Request

"*" indicates required fields

Country

Privacy Policy*
IDEX

Documentation & Downloads related to this product

User Manuals

Product Factsheets

Spare Part Manual

Additional Downloads

Videos
