X-PROTINT® Automatic Paint Dispenser

X-PROTINT® Automatic Paint Dispenser – Easy access
X-PROTINT® Automatic Paint Dispenser
Previous
Next
  • Increase in speed
  • Reliable steel structure
  • Clever operator and serviceability solutions

The X-PROTINT® combines robust, steel-armored durability with user-friendly operation and low total cost of ownership. Its proven piston pump technology delivers significantly faster dispensing speeds, making it a reliable, high-performance solution for today and the future.

As the larger model in the X-SERIES, the X-PROTINT® features a modular design with just four motors and one board for simplicity. Click-on, click-off canisters enable easy self-maintenance, offering a versatile, all-around solution for demanding environments.

Request Information

Product Information Request

"*" indicates required fields

Country

Privacy Policy*
IDEX

Features

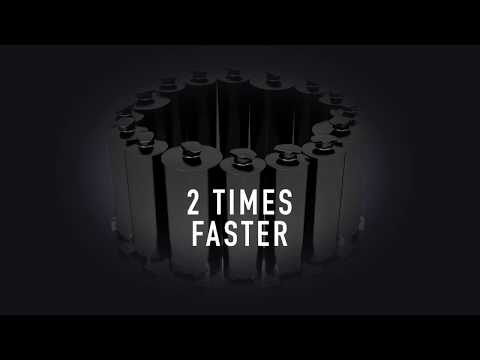

  • 16 or 24 canisters (12*2.3 l + 4*4.6 l or 9*1.3l + 12*2.3l + 3*4.6l)
  • Piston pump technology
  • Flow rate 0.5 l/min
  • 0.077 ml smallest dispense
  • Bi-directional turntable
  • Airtight nozzle closure & tubeless design
  • Elegant & robust
  • Front refilling
  • Easy can shelf
  • Universal and water based colorants
  • Solvent optional
  • HWD 123x82x87cm
  • Optional: Gravimetric dispensing with scale

General

  • Automatic sequential
  • Bi-directional
  • Colorants: Universal, Water based, Solvent based

Canisters

  • 16 or 24 canisters
  • Material: Polymeric (POM)
  • Size: 1.3/2.3/4.6 l

Pump

  • Piston pump
  • Minimum dispense: 0.077 ml (1/384 fl. oz.)
  • Pump size: 43 ml
  • Maximum Flow rate: 0.5 l/min
  • Polymeric needle valve
  • Seals material: Teflon & Viton
  • Copied calibration – no recalibration required

Can Table

  • Optical can sensor
  • Maximum can height: 41 cm (50cm no shelf)
  • Dispense tray: Manual
  • Dimensions: 38 x 35 cm (WxD)
  • Loading height: 25 cm

Dimension & Weight

  • HWD 123 x 82 x 87 cm
  • Filling height: 115 cm
  • Packaging HWD 142 x 98 x 98 cm
  • Weight net: 128 kg

Power Supply & Safety

  • 110V +/- 10%, 50Hz/60Hz (separate machine code)
  • 230V +/- 10%, 50Hz/60Hz
  • CE & UL Certificate (separate machine code)

Brush

  • Passive brush to clean pump nozzles

When you order accessories, they allow you to personalise your machine to your specifications.

Accessories are supplied separately with your machine and have to be mounted during or after the installation.
