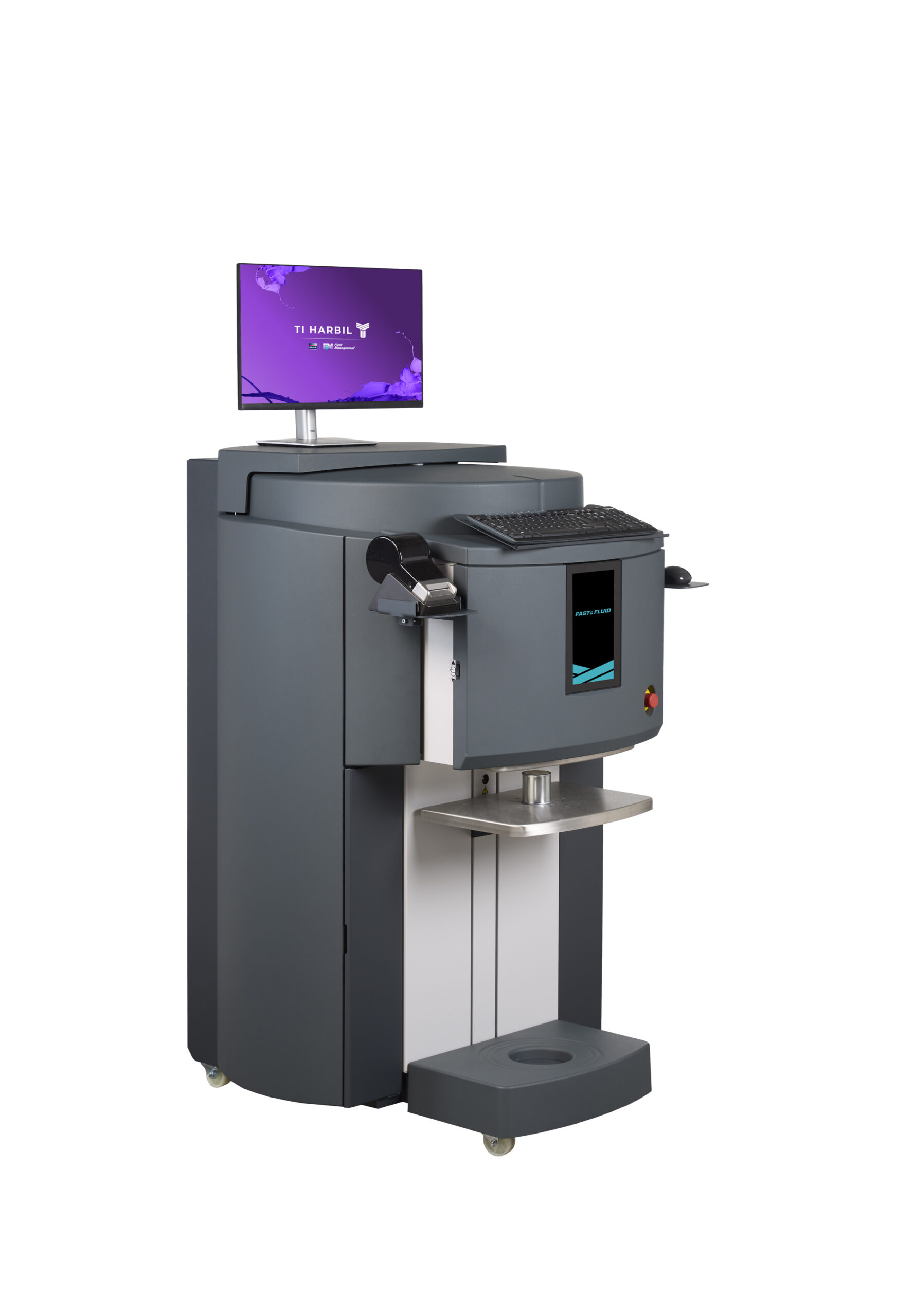

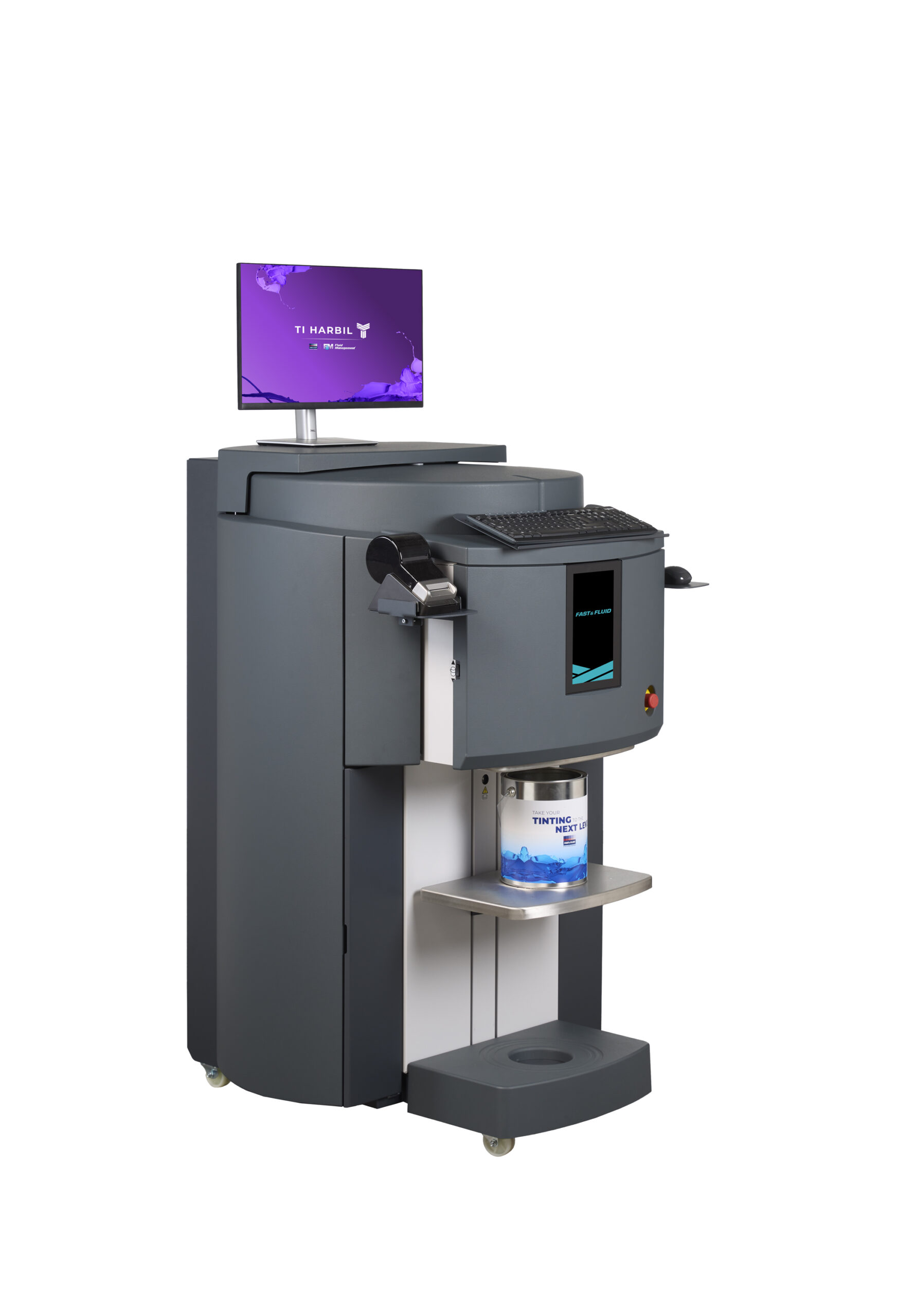

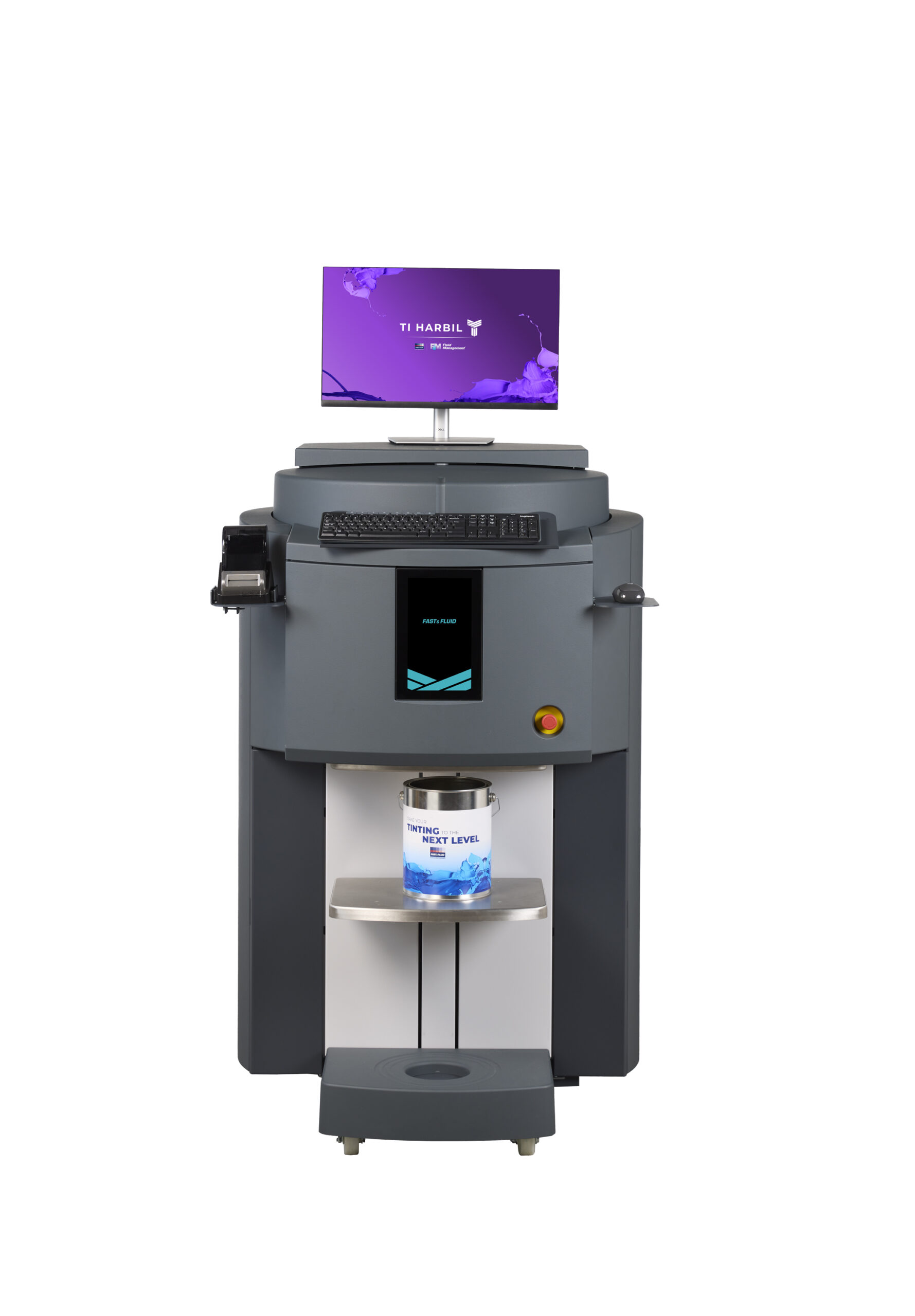

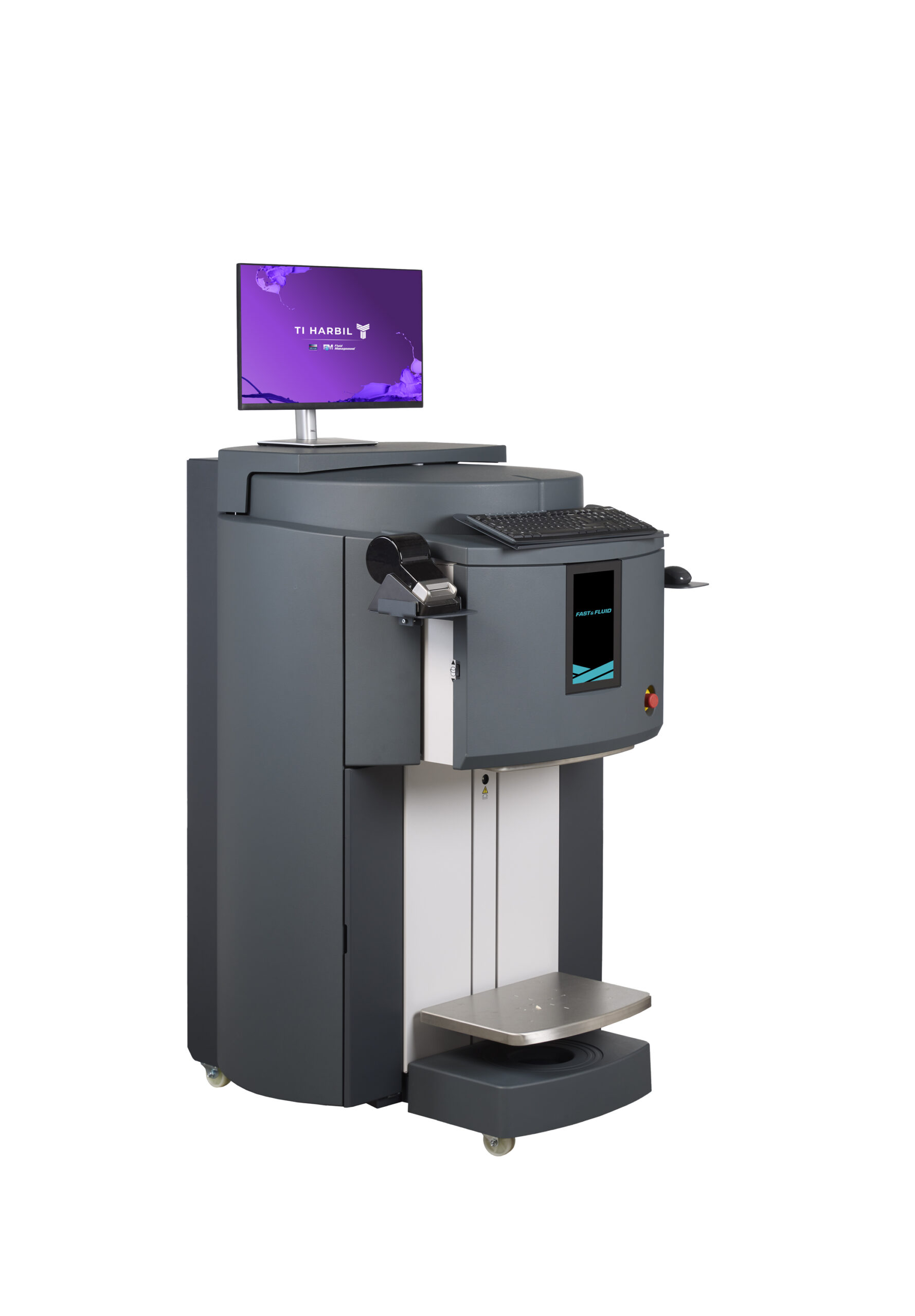

TI HARBIL 6 Automatic Paint Dispenser

Improved design & ergonomics
Intuitive operator display
Fully automatic smart can lift

Versatility, precision, and configurability define the TI HARBIL platform. For decades, HARBIL has set the standard for reliable tinting solutions trusted worldwide. Building on this proven foundation, the TI HARBIL platform is entering a new era of innovation. Designed to adapt to your business, the TI HARBIL platform introduces a new generation of smart, flexible technologies. It supports growth with the FastPrecision System including PumpInPump technology and reduces maintenance with the EcoClean Brush empowering smoother, more efficient operations. With its unique balance of precision engineering and flexible configuration option, the TI HARBIL platform enables businesses to achieve higher levels of accuracy, efficiency, and sustainability in every tinting workflow.

Request Information

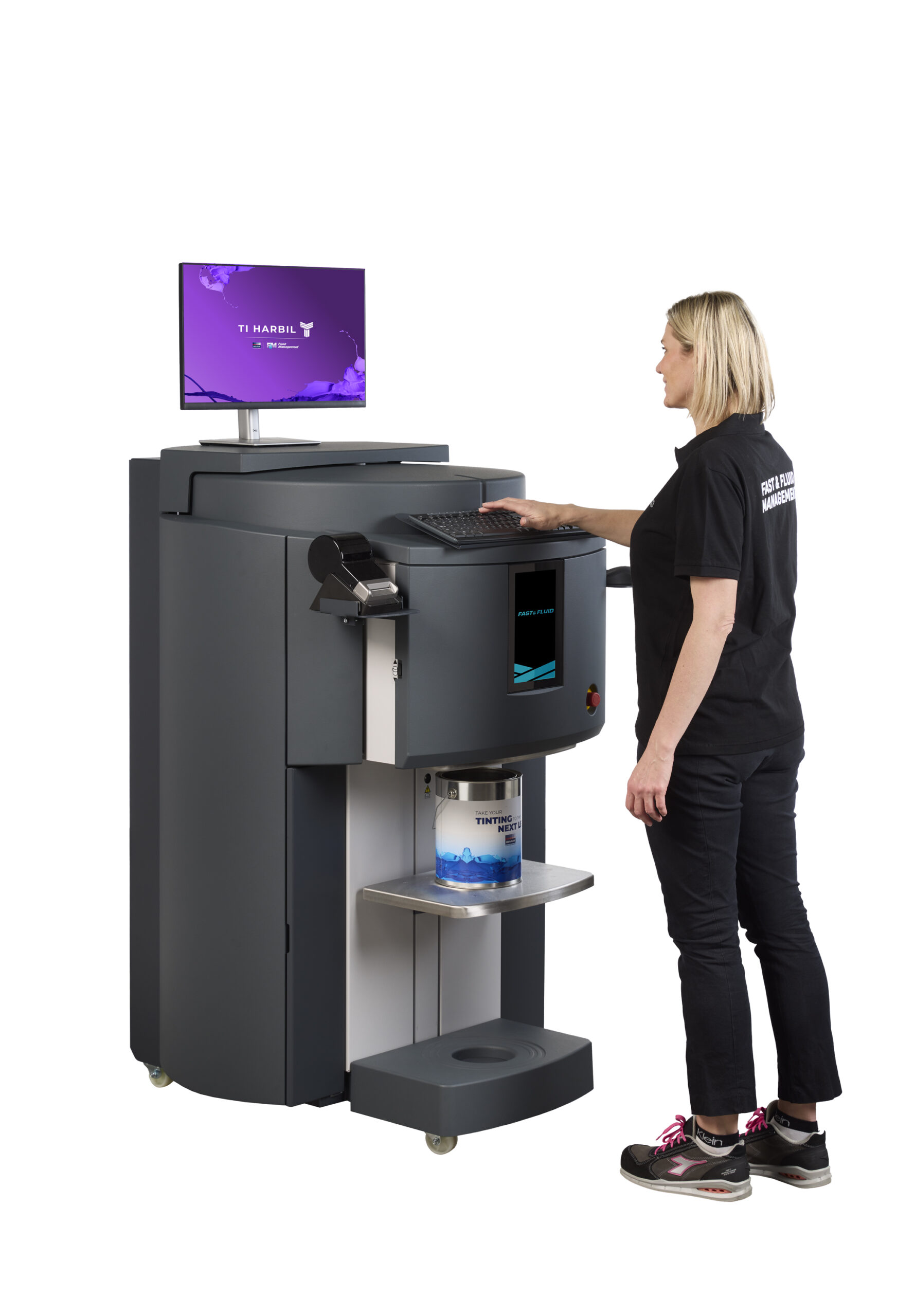

Improved design & ergonomics
Intuitive operator display
Fully automatic smart can lift

Request Information

Features

Improved ergonomics with a rotating top lid for easier refill access

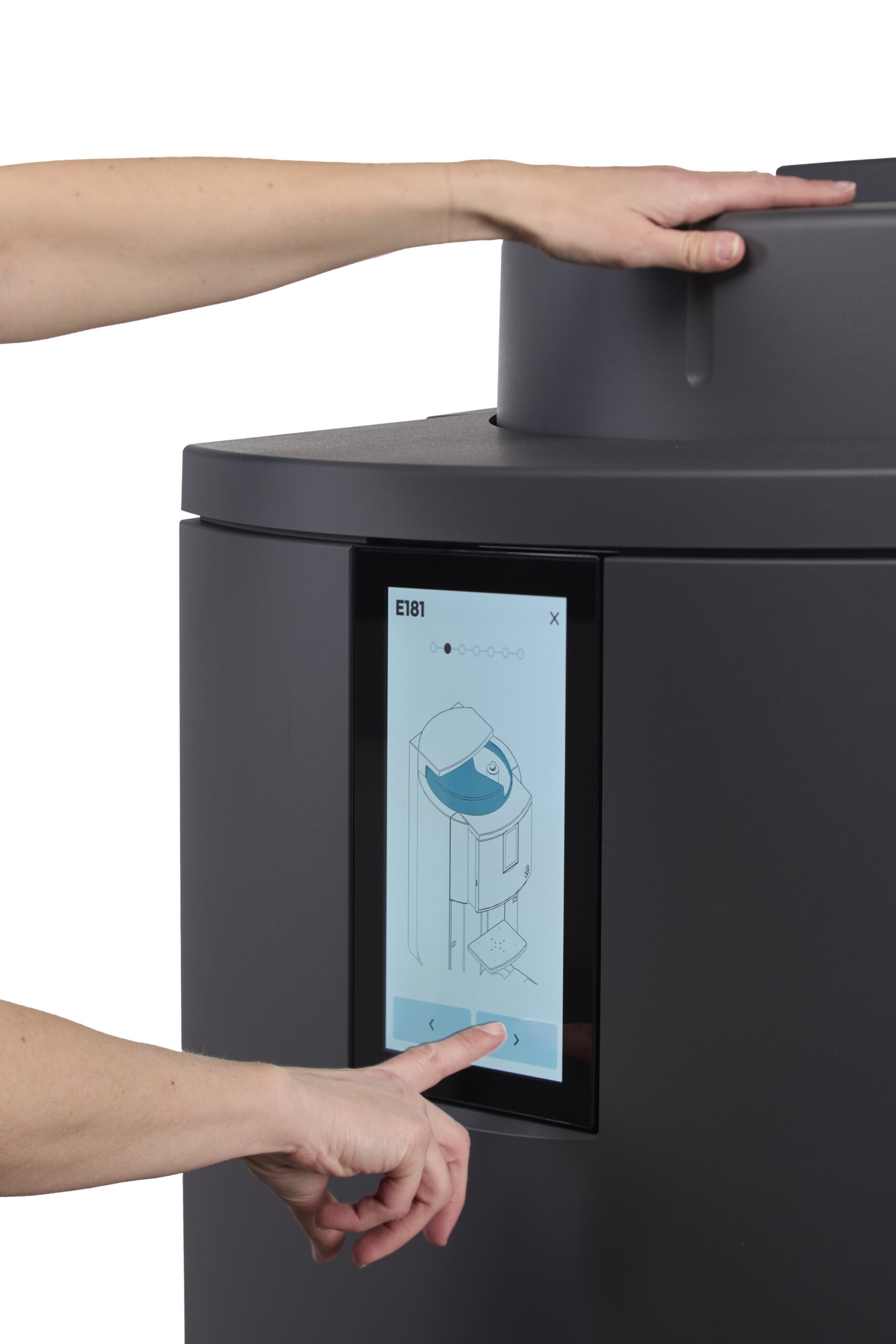

Touchscreen 10″ operator display designed for intuitive use by non‑trained staff

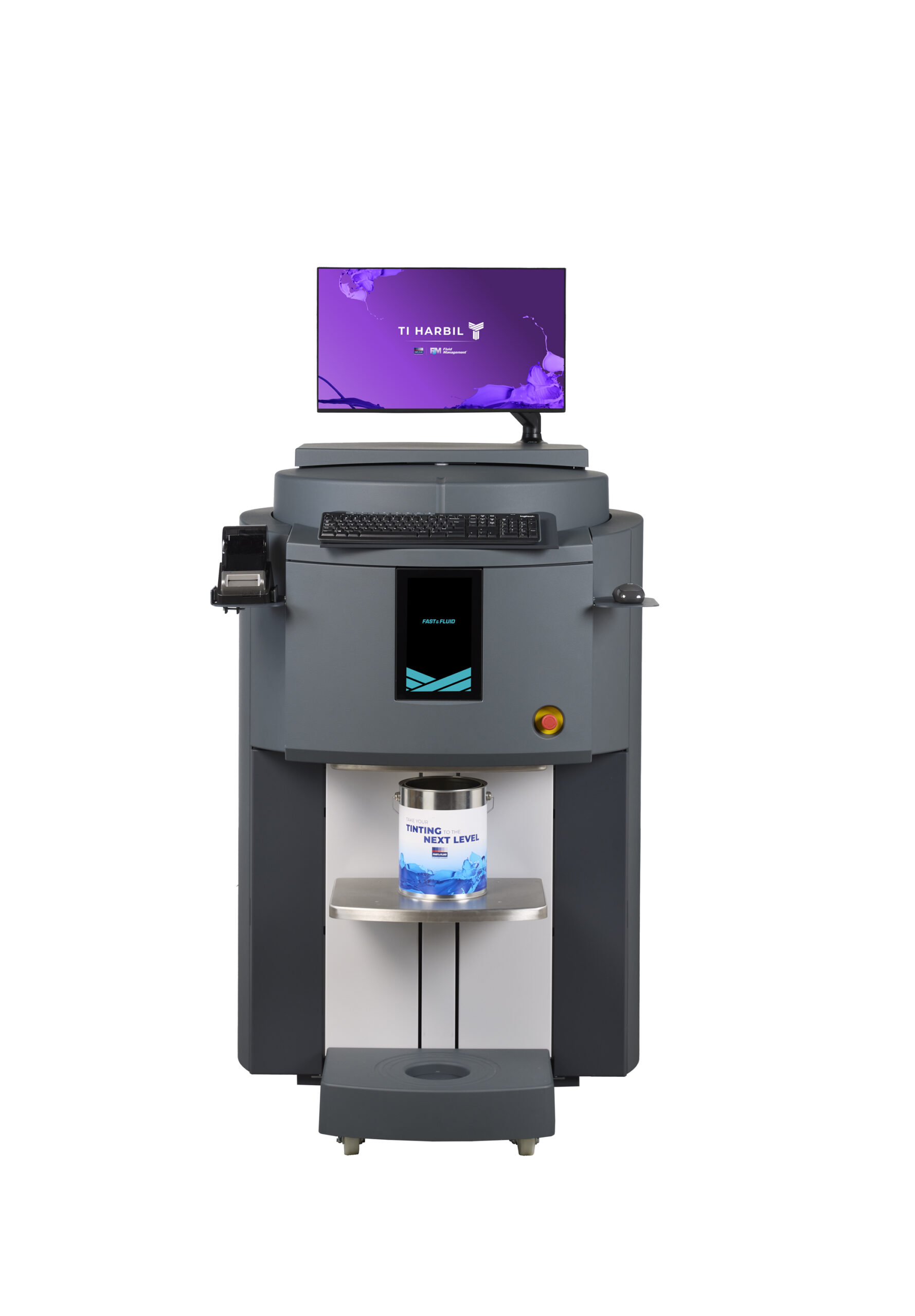

Fully automatic smart can table to streamline workflow and reduce handling

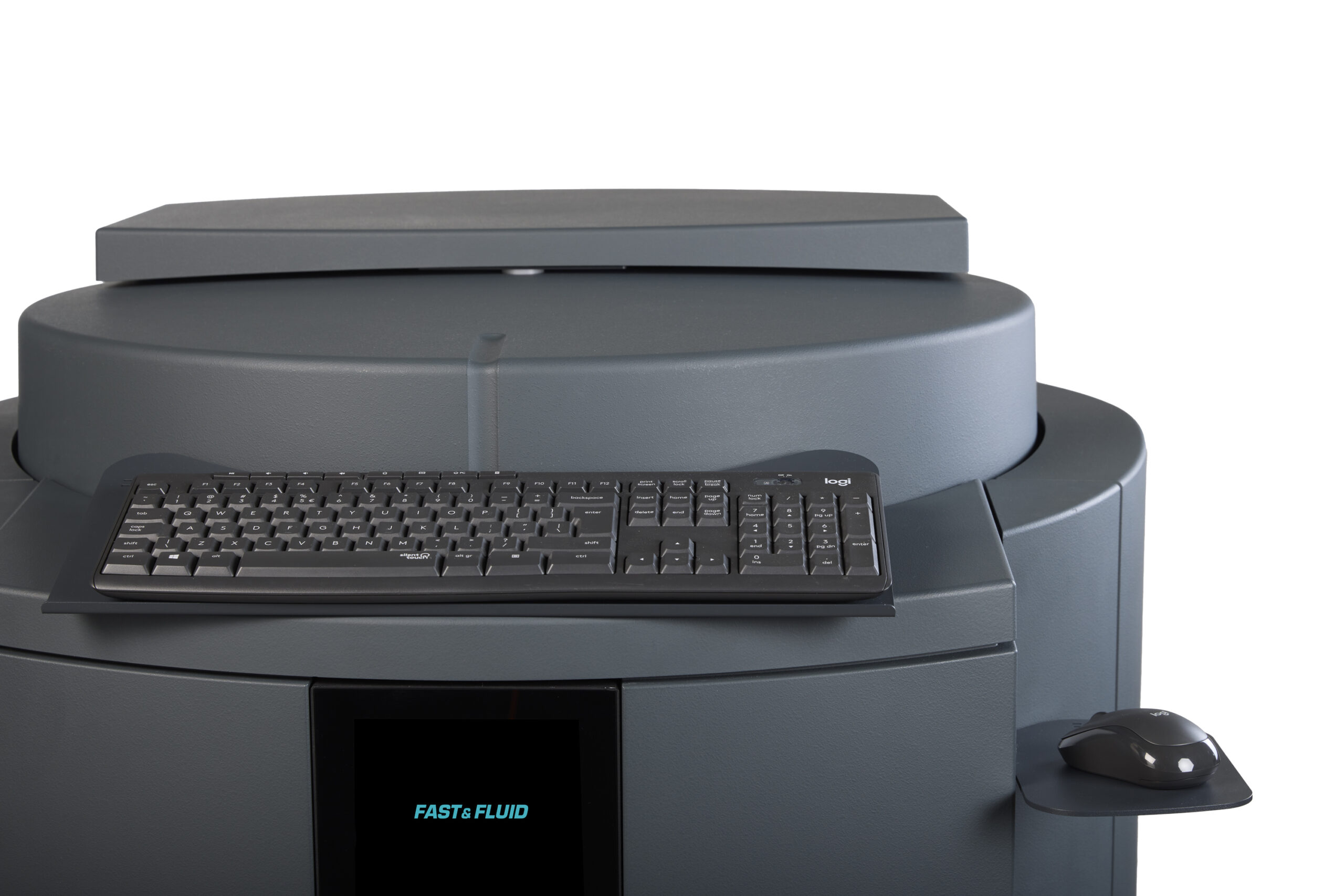

Optimized placement of monitor, keyboard, and peripherals for a more efficient workstation
FastPrecision System delivers high accuracy, including reliable sample dispensing

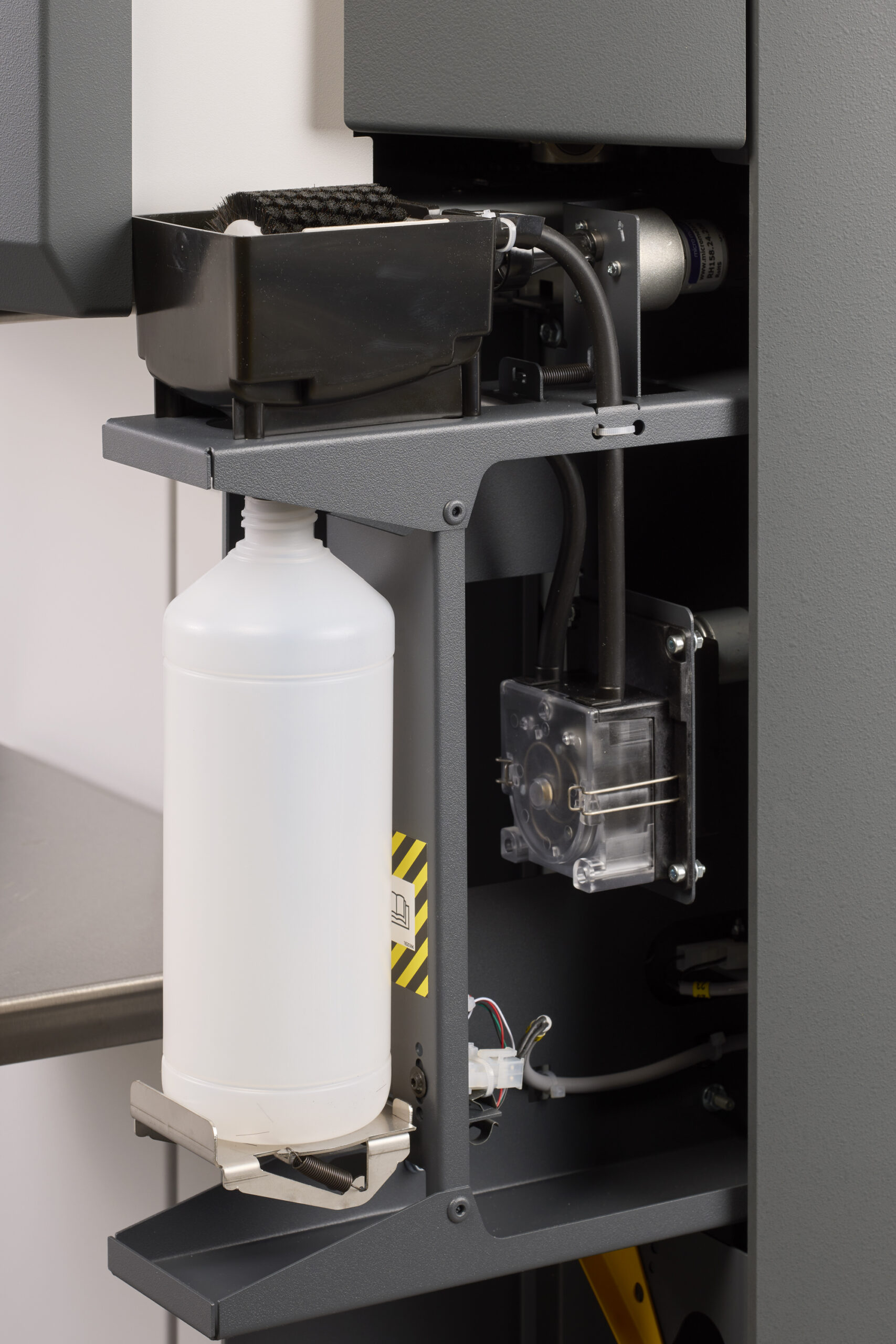

EcoClean Brush supports cleaner operation, reduced waste, and lower operator effort

General

Automatic sequential
Bi-directional
Colorants: Universal, Water based, Solvent based

Canisters

up to 32 Canisters
Material: Polymeric (POM)
Sizes: 2.3L and 4.6L

Pump

Harbil® ZeroPurge™ Piston pump
Pump size: 46 ml
Flow rate: 0.65 L/min
Min. dispense: 0.05 ml
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
ZeroPurge™
Copied calibration – no recalibration required

Optional:

PumpInPump
Pump size: 47 ml
Flow rate: 0.65 L/min
Min. dispense: 0.01 ml
Nozzle diameter: 0.6 / 1.4 / 6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
Copied calibration – no recalibration required

Can Table

Smart Automatic can table
Maximum can height: 46 cm
Optical can sensor: standard

Dimension & Weight

Net HWD: 142 x 87 x 96 cm
Net Weight: 230 kg
Packaging HWD: 173 x 95 x 114 cm
Packaging weight: 241 kg

Power Supply & Safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified

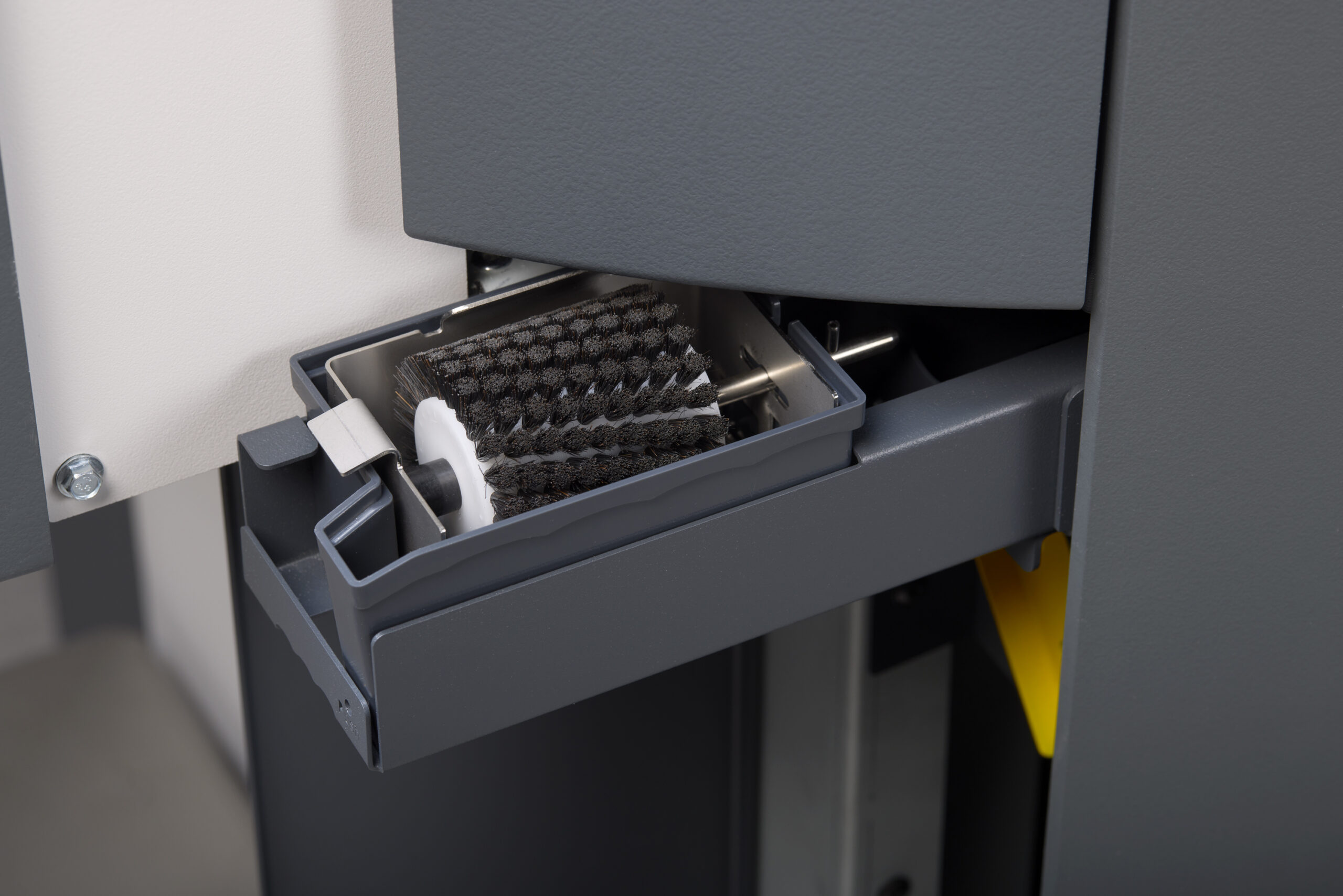

Brush

Sliding brush tray (standard)
Sliding brush tray with bottle (EcoClean Optional)
Brush container material: POM

Options

Different colours (RAL)

Order options and accessories to personalize your machine to your specifications. Factory-installed options come pre-built into your machine, while accessories are supplied separately and can be mounted during or after installation.
