TI ELEMENT 2S Automatic Paint Dispenser

Compact and simple
Robust
Ultra-low maintenance
Ultimate reliability

Simplicity, affordability, and reliability define the X-Series. Recognized for its simple design, user-friendly operation, and low maintenance, it has set the standard in basic tinting. Building on this legacy, the TI Element™ platform incorporates years of customer insights and innovation. The TI ELEMENT 2S, combining the proven technology of the TI ELEMENT 2 with the rugged armour-shell construction of the TI ELEMENT 4.

Request Information

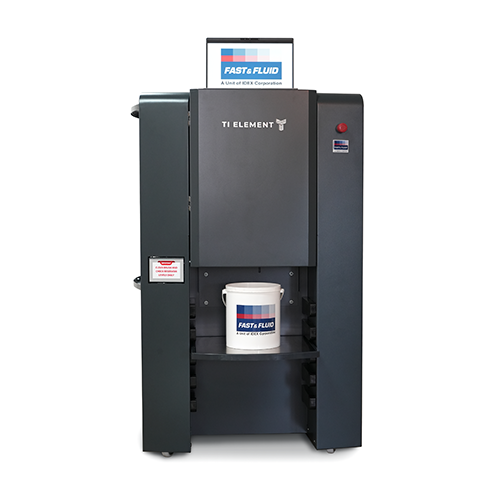

Edit_07329_front-view-with-bucket-and-laptop

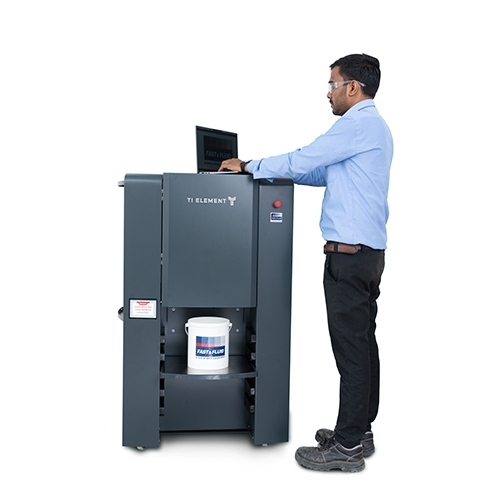

Edit_07332_front-view-with-operator-and-bucket

Compact and simple
Robust
Ultra-low maintenance
Ultimate reliability

Request Information

Features

Simple operations requires minimal training and support
Self-serviceable machine, requiring very few service visits
Easily transportable and fits in any small-medium store
Eliminate colourant wastage and mistints
Easily manage peak hours and large can orders
Keep spare inventory low with common parts across the Element dispensers

General

Automatic sequential
Bi-directional
Colorants: Universal, Water based, Solvent based

Canisters

up to 24 Canisters
Material: Polymeric (POM)
Sizes: 1.3L and 2.3L

Pump

ZeroPurge™ Piston Pump
Minimum dispense: 0.050 ml (1/512th of a shot)
Pump sizes: 31 ml
Maximum Flow Rate: 330 ml/min (11 oz/min)
Stainless steel ball valve
Copied calibration – no recalibration required

Can Table

Optical can sensor
Maximum can height: 41 cm
Dispense tray: Manual
Dimensions: 38 x 35 cm (WxD)

Dimension & Weight

Net HWD: 125 x 82 x 87 cm
Net Weight: 84 kg for 16 canister configuration
Packaging HWD: 142 x 98 x 98 cm
Packaging weight: 114 kg for 16 canister configuration

Power Supply & Safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE Certificate

Brush

Brush container material: POM

Order options and accessories to personalize your machine to your specifications. Factory-installed options come pre-built into your machine, while accessories are supplied separately and can be mounted during or after installation.
