GA480 Automatic Mixer

Auto button
Fast clamping
Easy diagnostics

The GA480 is a very fast, high performance automatic mixer which makes the life of the user easy with its auto button selecting the optimal mixing speed and time. This auto button in combination with the improved clamping speed and dynamic balance offers a very reliable mixer. The option to connect the mixer to the PC of a paint dispenser enables you to easily obtain a clear overview on machine status and usage.

Request Information

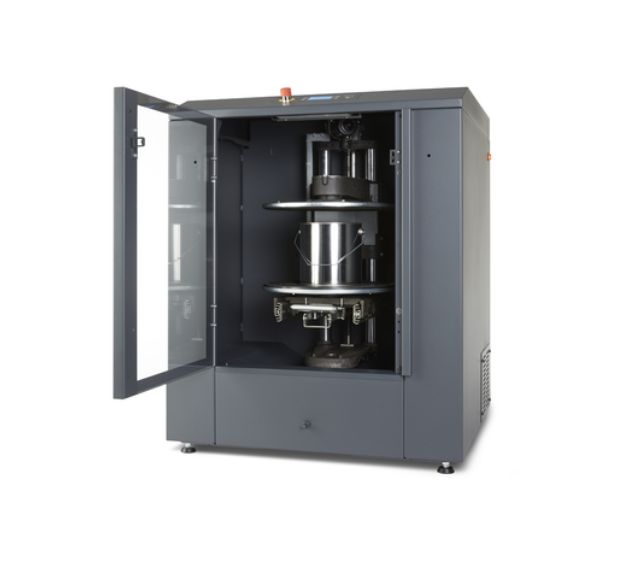

GA480 automatic mixer - extractable can plate

GA480 automatic mixer - sliding door detail

Auto button
Fast clamping
Easy diagnostics

Request Information

Features

Fully automatic clamping
Intelligent mixing
Graphical display
Dedicated control on clamp unit
Dynamic balance
Service control via diagnostic software
Fully extractable can table
Multiple speeds up to 230 rpm
Continuous rpm and time regulation
Built-in loading ramp
38 cm bottom plate diameter
Up to 40 kg; can height 8-40 cm
HWD 101x82x81 (79) cm

General

Medium and high volume paint turnover

Can specs

Max. product weight: 40 kg
Min. height: 80 mm
Max. height: 400 mm
Plate diameter: 380 mm
Suitable for oval cans
Mixing of multiple cans possible

Dimension & weight

HWD: 101 x 82 x 81 (79) cm
Weight: 240 kg

Clamping

Automatic, dedicated control

Usage

Rotating swing door (to be mounted left or right)
Sliding door optional
Loading plate fully extractable
Cradle stops automatically at unloading postion
Display user interface: auto button, graphical display, easy to adjust
Variable speed (slow start), between 230 and 100 rpm, dynamic balance

Service

Removable top cover and back panel
Splash guard to protect from paint spillage, replaceable rubber on bottom clamp plate, service control via FFM Maintenance and/or
display, USB port on outside
750 Watt AC motor

Installation

Wheels and feet at bottom, built-in loading ramp
Power supply:
– 230V-50/60Hz or 115V/60Hz
– Standard removable net entry at the back
– Power switch at the side

When you order options or accessories, they both allow you to personalize your machine to your specifications. Options are factory-installed features and you will find them built in to your machine when it arrives. Accessories are supplied separately and have to be mounted during or after the installation.
