GA350 Manual Mixer

  • Ergonomic
  • Reliable
  • Fast

The GA350 manual mixer combines advanced safety features with ergonomic design for ease of use. Engineered for speed and durability, it requires minimal maintenance, reducing operational costs while ensuring reliable performance.

Request Information

Product Information Request

"*" indicates required fields

Country

Privacy Policy*
IDEX

Features

  • Manual clamping
  • Self homing cradle
  • Fully extractable can table
  • Integrated clamping unit
  • 3 preset times
  • 3 speeds (up to 230 rpm)
  • Automatic speed limit
  • Unlocked can table mixing prevention
  • Mechanical cradle lock
  • 38 cm bottom plate diameter
  • Up to 40 kg; can height 8-40 cm
  • HDW 82x82x101 cm

General

Medium and high volume paint turnover

Canisters

Max weight: 40 kg
Min. height: 80 mm
Max. height: 400 mm
Plate diameter: 380 mm
Suitable for oval cans
Mixing of multiple cans possible

Dimension & Weight

HWD: 101 x 82 x 82 cm
Weight: 218 kg

General

  • Medium and high volume paint turnover

Can specs

  • Max weight: 40 kg
  • Min. height: 80 mm
  • Max. height: 400 mm
  • Plate diameter: 380 mm
  • Suitable for oval cans
  • Mixing of multiple cans possible

Footprint & weight

  • HWD: 101 x 82 x 82 cm
  • Weight: 218 kg

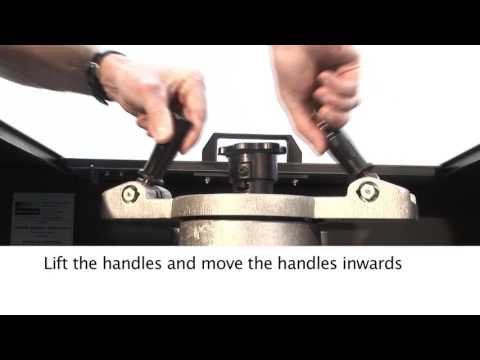

Clamping

  • Manual, cradle fixed while clamping

Usage

  • Shutter door
  • Loading plate fully extractable
  • Cradle stops automatically at unloading postion
  • Display user interface: easy to read LED display, 3 pre set times, easy to adjust, up to 16 min
  • 3 Speeds (110/140/230 rpm), dynamic balance

Service

  • Removable back panel
  • Replaceable rubber on bottom clamp plate
  • 750 Watt AC motor

Installation

  • Wheels and feet at bottom, built-in loading ramp
  • Power supply:
    – 230V-50/60Hz or 115V/60Hz
    – Standard removable net entry at the back
    – Power switch at the side

No options and accessories available.
