HA480 Automatic Paint Dispenser

High-quality design
Harbil® ZeroPurge™ Piston pump
Fast and reliable

The HA480 sets a new benchmark in tinting, tailored for DIY stores, medium-sized retail outlets, and service centers. With faster dispense speeds, ZeroPurge™ piston pump technology, and AutoDrive™, it ensures efficient, reliable, and future-ready performance for your operations.

Request Information

Find a Distributor

High-quality design
Harbil® ZeroPurge™ Piston pump
Fast and reliable

Request Information

Find a Distributor

Features

16-32 POM/SST canisters in 2/3/6/10 l size
ZeroPurge piston pump technology
Universal, solvent and water based colorants
Pump size: 100 ml
Flow rate 0.8 – 1.0 l/min
0,05 ml smallest dispense
Electric can table
Electric punch (optional)
Heating set (optional)
Low/high model
HWD 151x88x96 cm (low model)
HWD 171x88x96 cm (high model)

General

Automatic sequential, Solvent based, water based, universal and biocide-free colorants

Canisters

Up to 16 – 32 canisters
Material: polymeric/stainless steel (optional)
Sizes: 2/3/6/10 l

Pump

Harbil® ZeroPurge™ Piston pump
Pump size: 100 ml
Flow rate: 0.8 – 1.0 l/min
Min. dispense: 0.05 ml
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
ZeroPurge™
Copied calibration – no recalibration required

Nozzles

Airtight – integrated nozzle closures
Cleaning system: automatic brush & internal flush

Can Table

Electric Lift
Dimensions: 44 x 31 cm
Loading height: 39 cm (low model) / 55 cm (high model)
Max. can height: 42 cm (low model) / 46 cm (high model)
Optical can sensor / Short Range sensor (optional)

Dimension & Weight

HWD 151 x 88 x 96 cm (Low model)
HWD 171 x 88 x 96 cm (High model)
Filling height: 140 cm (Low model)112 cm from step (Low model) 160 cm (High model) and 132 cm from step (High model)
Packaging dimensions: 193 x 98 x 117 cm
Weight – Net/Gross 193-265 / 224-296 kg

Power Supply & Safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified, UL approved

Brush

Material: polymeric / Stainless steel (optional)

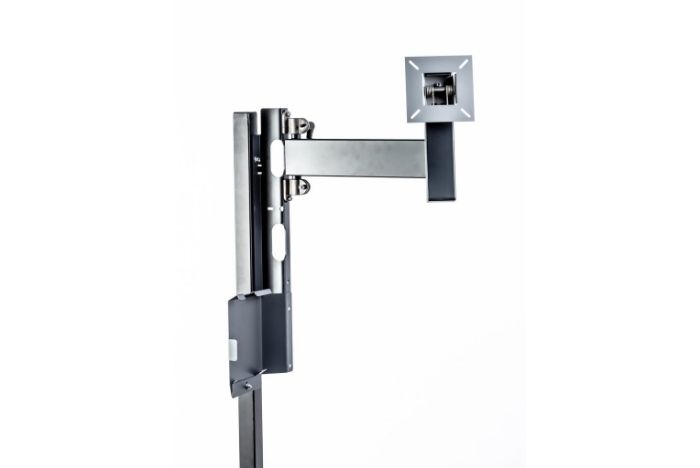

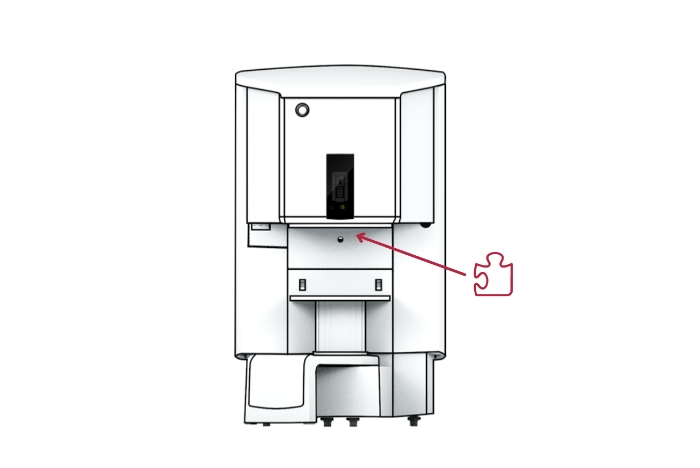

Options

Different colours (RAL).

When you order options or accessories, they both allow you to personalize your machine to your specifications. Options are factory-installed features and you will find them built into your machine when it arrives. Accessories are supplied separately and have to be mounted during or after the installation. Below find the list of available options & accessories for the HA480.
