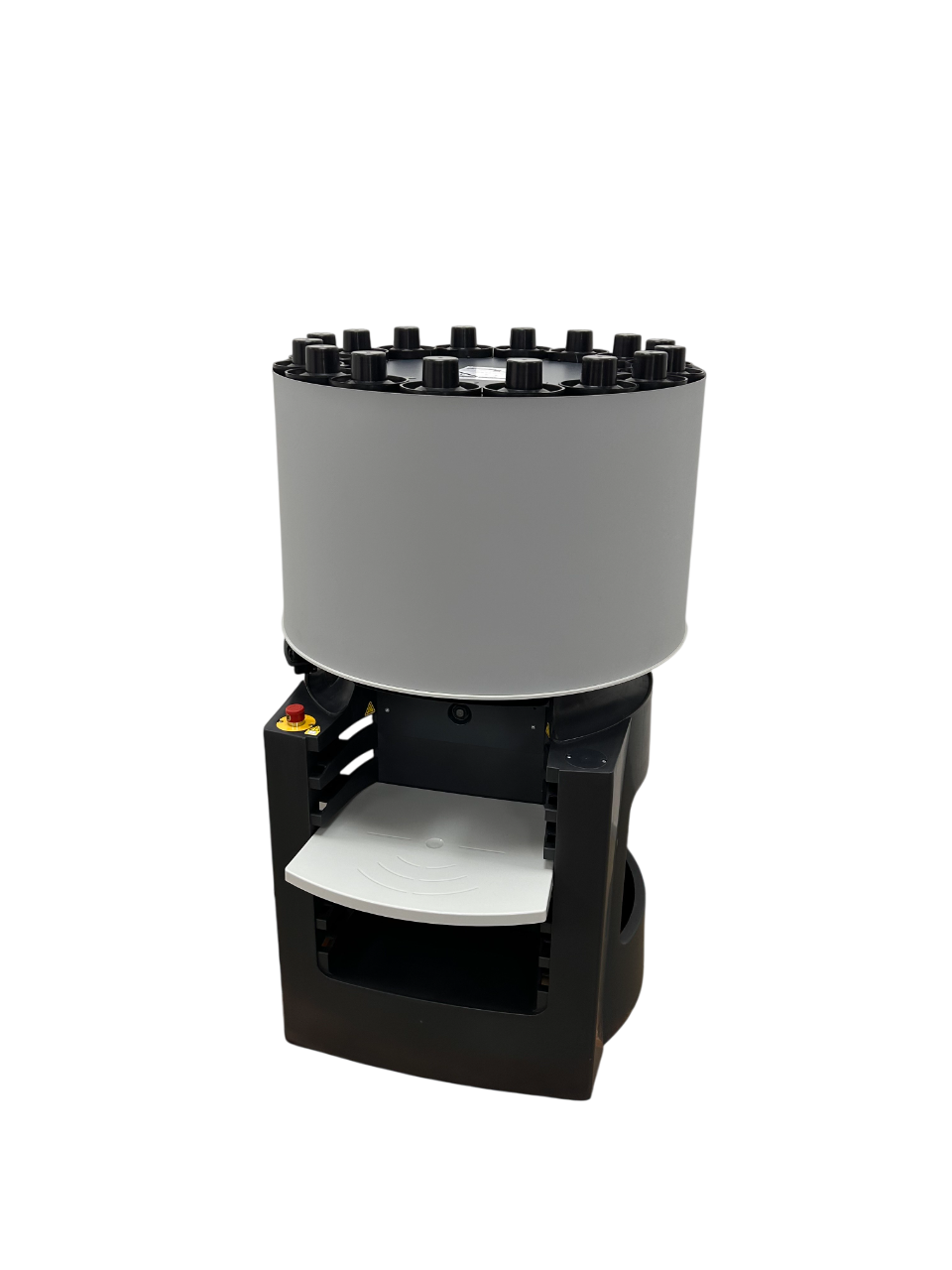

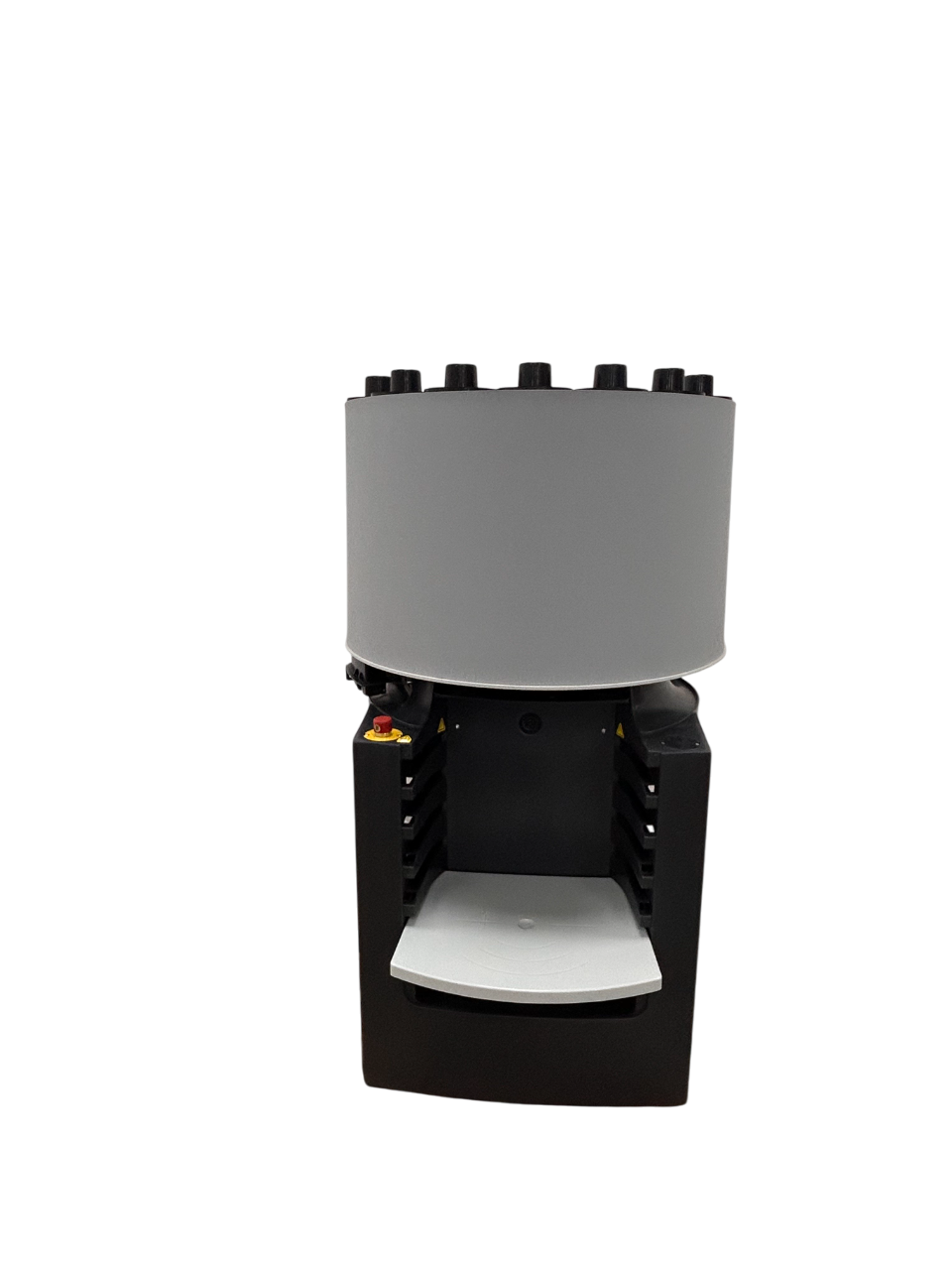

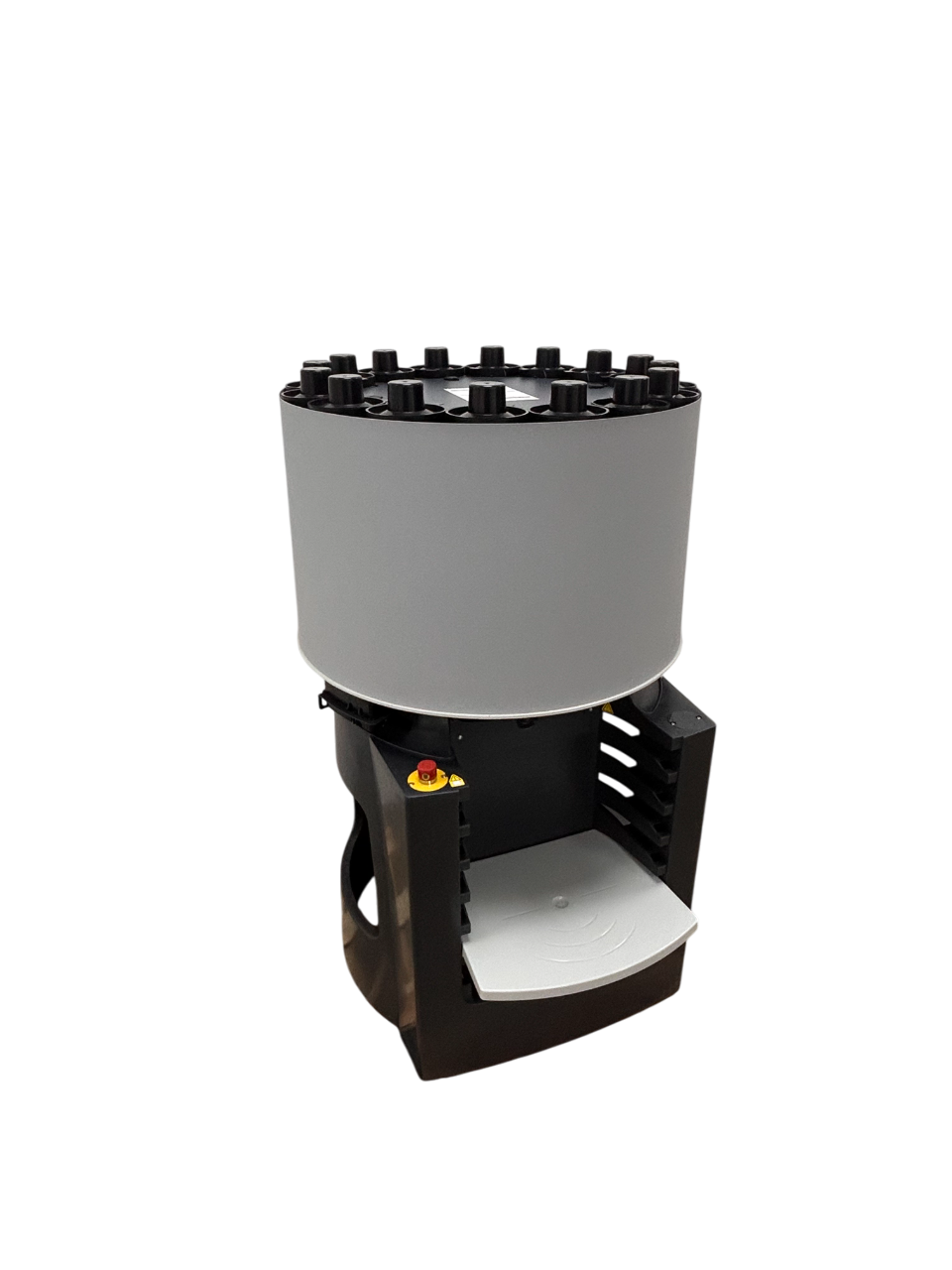

X-SMART Sleek Automatic Paint Dispenser

Designed for simplicity
Larger dispense bay
Accurate and repeatable tinting
More floor space available
Low maintenance

As part of the affordable and reliable X-Series, the X-SMART Sleek builds upon the trusted X-SMART with a sleeker design. Experience simplicity in installation, operation, and service, complemented by a larger dispense bay ready for various can sizes. Achieve accurate and repeatable tinting, precisely dispensing down to 0.077 ml with every use. The space-saving sleek base design frees up 14% more floor space, and the innovative modular design with click-on-click-off canisters makes it a self-serviceable machine, thereby offering low maintenance. Trusted and recognized for its design and user-friendly operation, the X-SMART Sleek is perfect for streamlined daily operations.

Request Information

Find a Distributor

Designed for simplicity

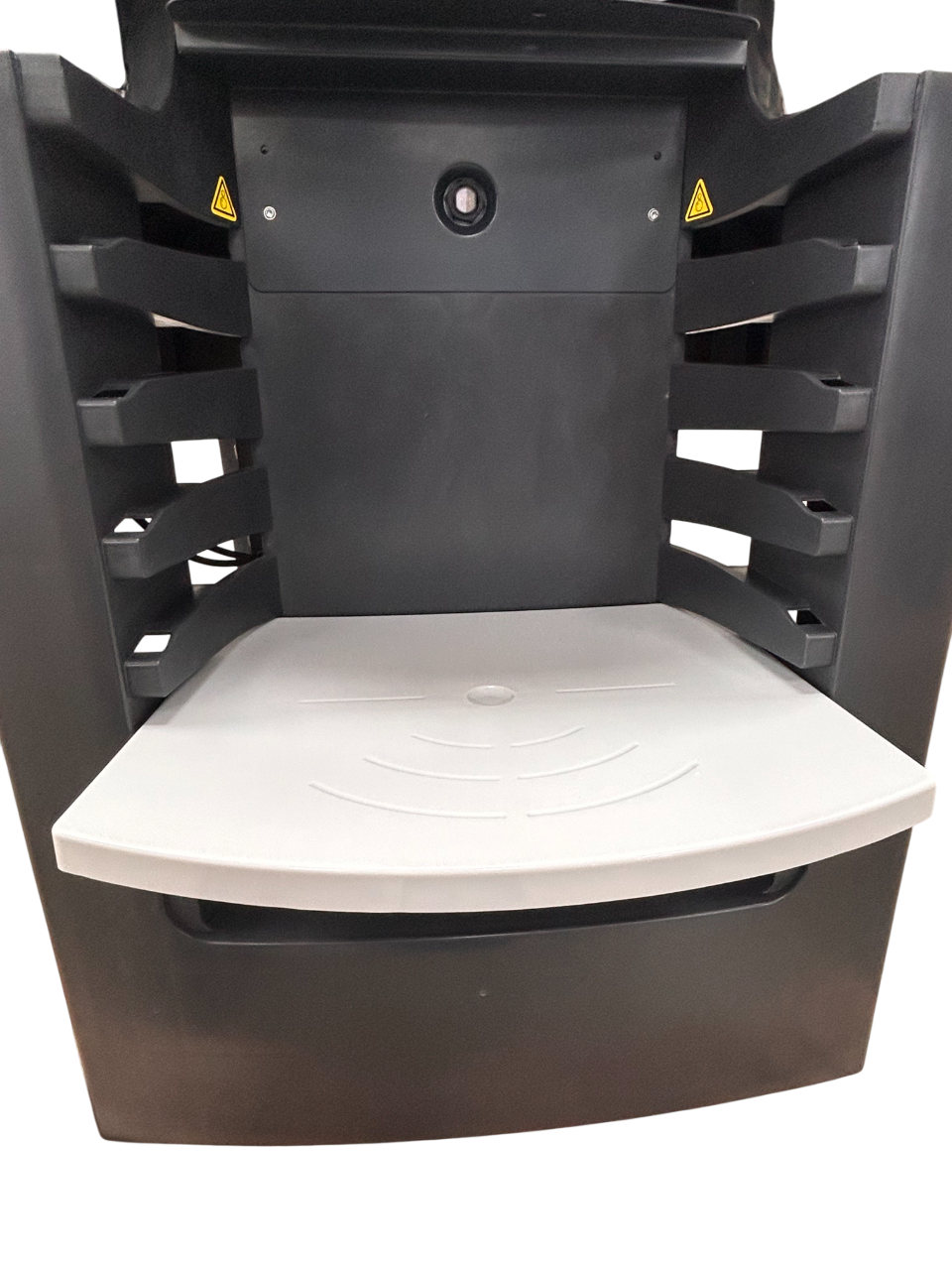

Larger dispense bay
Accurate and repeatable tinting
More floor space available
Low maintenance

Request Information

Find a Distributor

Features

Piston pump technology
16 PP canisters in 2.25 l size
Universal and water based colorants
Flow rate up to 0.25 l/min
0.077 ml smallest dispense
Tubeless design
Active nozzle closure
Net HWD 125 x 83 x 95 cm

General

Automatic sequential
Model: X-Smart
Colorants: Universal, Water based (LVOC/ ZVOC)

Canisters

16 Canisters
Capacity: 2.25 Liter

Pump

System: Patented piston pump
Maximum Flow Rate: 0.25 l/min
Accuracy: 0.077 ml (1/384th minimum dispense)

Nozzles

Patented airtight valve for low-VOC colorants

Can Table

Manual shelf
Max. can height: 47 cm
Optical can sensor

Dimension & Weight

Net dimensions: HWD 125 X 83 X 95 cm
Net weight: 46 kg
Packaging Dimensions: HWD 115 X 90 X 90 cm
Net weight: 65 kg

Power Supply & Safety

Dual voltage – 110/220v 50/60Hz
UL, CSA, FCC, CE

Brush

Click fit without sensor
Brush container material: PP/POM

Options

PrismaPro and Tintelligence software to assist in running paint department. Different options available (see software section for details)

When you order accessories, they allow you to personalize your machine to your specifications. Accessories are supplied separately with your machine and have to be mounted during or after the installation.

accessories
