X-SMART PRO Automatic Paint Dispenser

Sturdy build
Small footprint
Low maintenance

The X-SMART PRO is an entry-level, automatic sequential dispenser designed for universal and water-based colorants. Ideal for daily tinting needs, it offers simplicity, reliability, and speed. Key benefits include fast, consistent tinting, compact design, low maintenance, and user-friendly operation—all at an affordable price.

Request Information

Find a Distributor

X-SMART PRO - PrismaPro2 desktop application

Sturdy build
Small footprint
Low maintenance

Request Information

Find a Distributor

Features

Piston pump technology
16 PP/POM canisters in 2.25 l size
Water-based
Flow rate up to 0.25 l/min
0.077 ml smallest dispense
Tubeless design
Active nozzle closure
HWD 123x82x83 cm

General

Automatic sequential
Universal, water-based colorants
Solvent compatible

Canisters

Up to 16 canisters
Material: PP/POM
Size: 2.25 l

Pump

Piston pump
Size: 30 ml
Flow rate: 0.25 l/min
Min. dispense: 0.077 (1/384 fl. oz.)
Nozzle diameter: 4 mm; 2mm and 3mm option also available
Polymeric needle valve
Seals material: Viton and Viton Extreme
Copied calibration – No recalibration required

Nozzles

Air tight – Integrated nozzle closures
Nozzle cleaning system: passive brush

Can Table

Manual shelf
Dimensions: 23 x 37 cm (WxD)
Loading height: 25 cm
Max. can height: 33 cm
Optical can sensor

Dimension & Weight

Net HWD 122 x 80 x 90 cm
Filling height: 115 cm
Weight net 84 kg

Power Supply & Safety

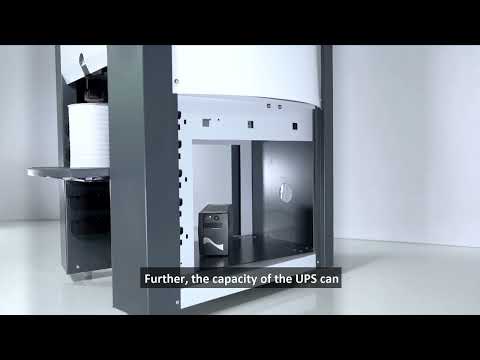

Low power consumption with UPS/Battery backup support
110V/230V +/- 10%, 50Hz/60Hz

Options

Maintenance & Operations
– Low level (only purge & brush clean)
– Minimal operator training
– Dust & rodent proof
– Flood resistant up to 40 cm
– Low TCO

When you order accessories, they allow you to personalize your machine to your specifications.

Accessories are supplied separately with your machine and have to be mounted during or after the installation.

accessories
