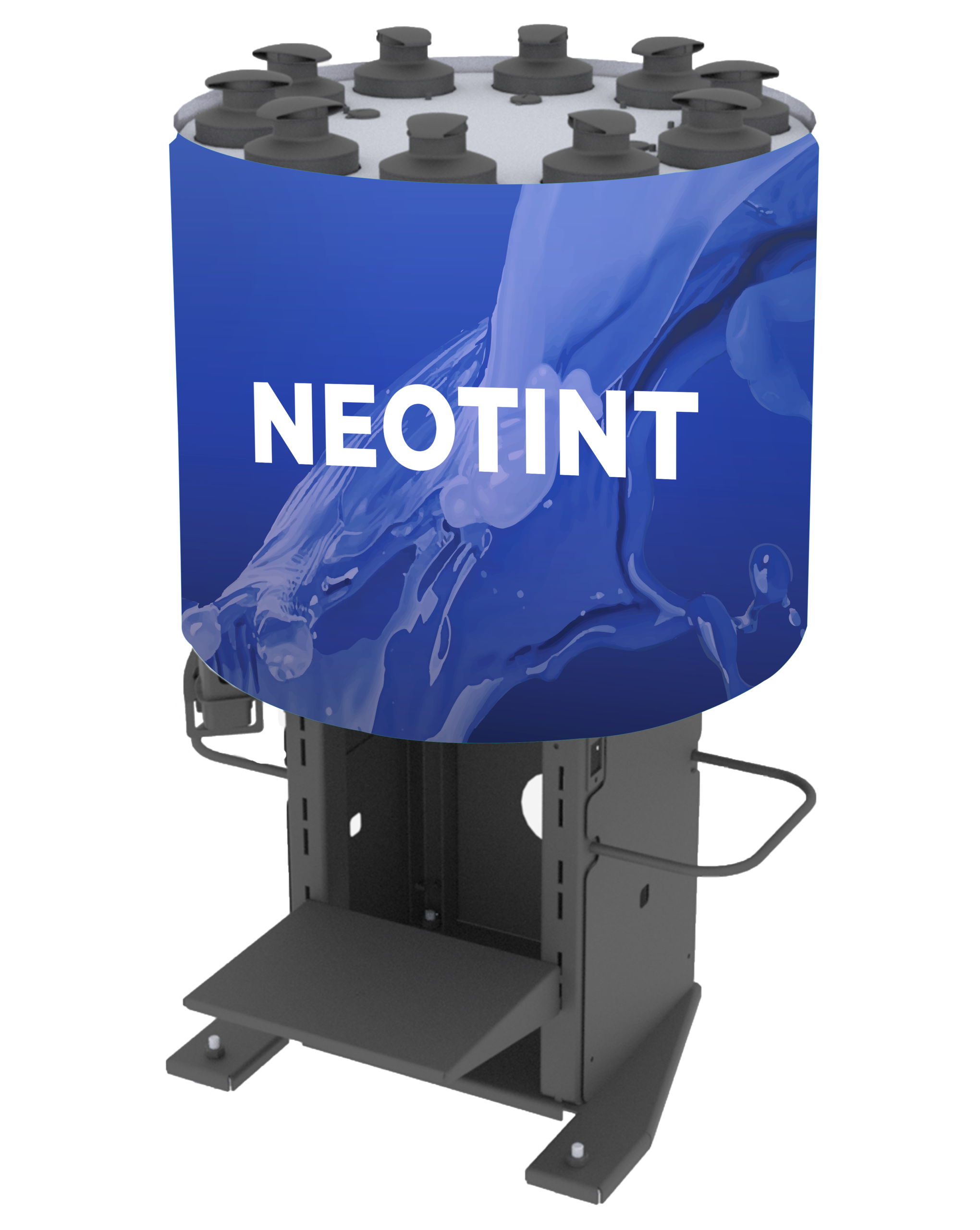

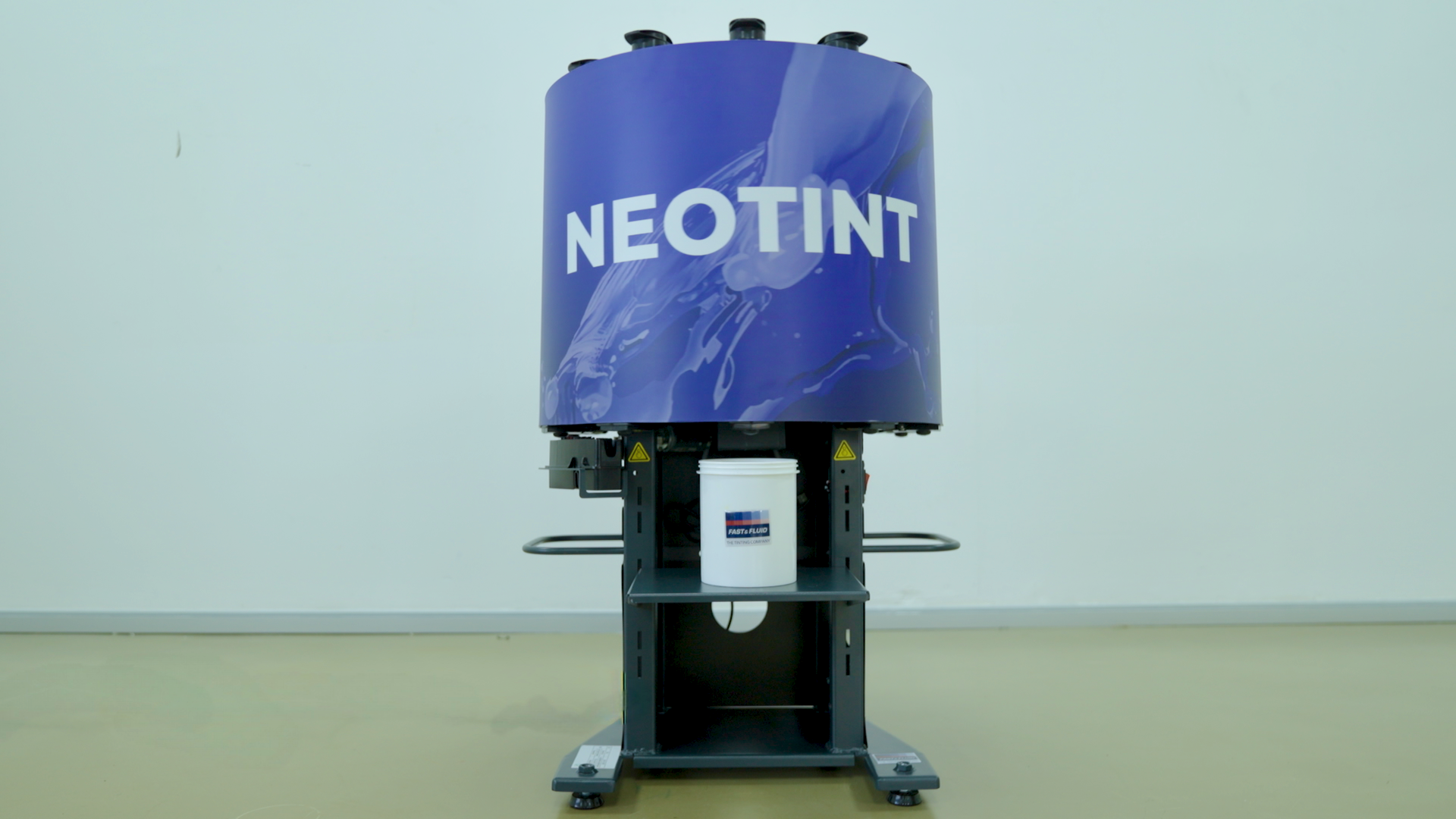

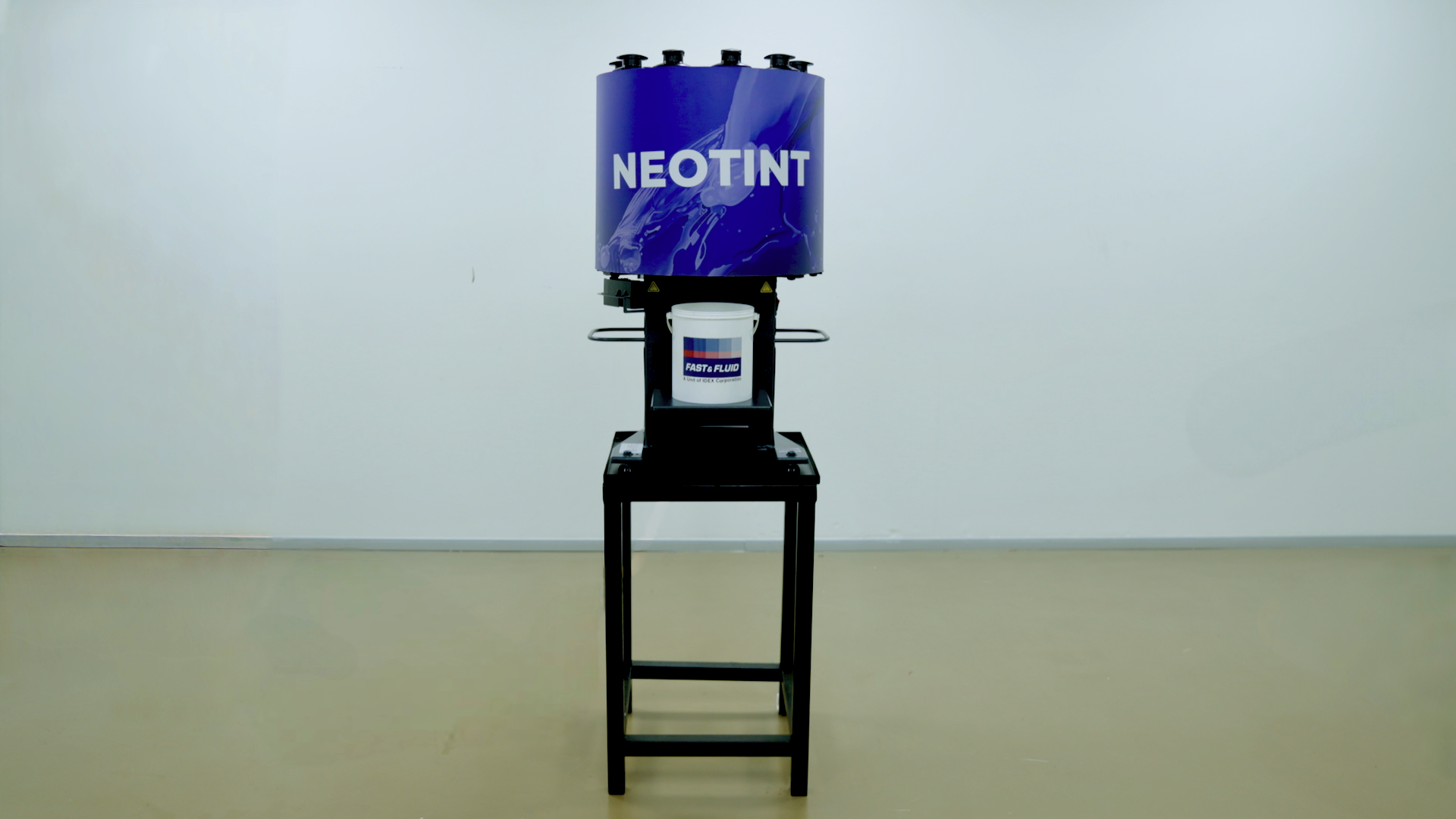

NeoTint Automatic Paint Dispenser

Previous
Next
  • Ultra compact
  • Ultra-low maintenance
  • Ultimate reliability

Bring high-precision tinting anywhere with NeoTint, the revolutionary automatic paint dispenser engineered for the lowest footprint. Designed for simplicity and cost-efficient operation, it requires minimal operator training, low maintenance, and features an intuitive interface that makes operation effortless. Its ultra-compact footprint—taking up to 2.5 sq. ft.—fits seamlessly into compact spaces, multipurpose stores, and emerging retail formats. Deliver consistent color accuracy and reliable dispensing across high-demand shades with its patented piston pump technology, while robust flood (upto 40cm), dust, and rodent-resistant engineering ensures durable, worry-free performance. Elevate your retail presence with NeoTint and confidently enter the tinting market with unmatched convenience, reliability, and precision.

Request Information

Product Information Request

"*" indicates required fields

Country

Privacy Policy*
IDEX

Features

  • Intuitive, user-friendly operation requiring minimal operator training
  • Ultra-low maintenance design limited to simple purge and brush cleaning
  • Lowest footprint (< 2.5 sq. ft.) and compact build, fitting effortlessly into compact spaces, hardware shops, and emerging retail channels

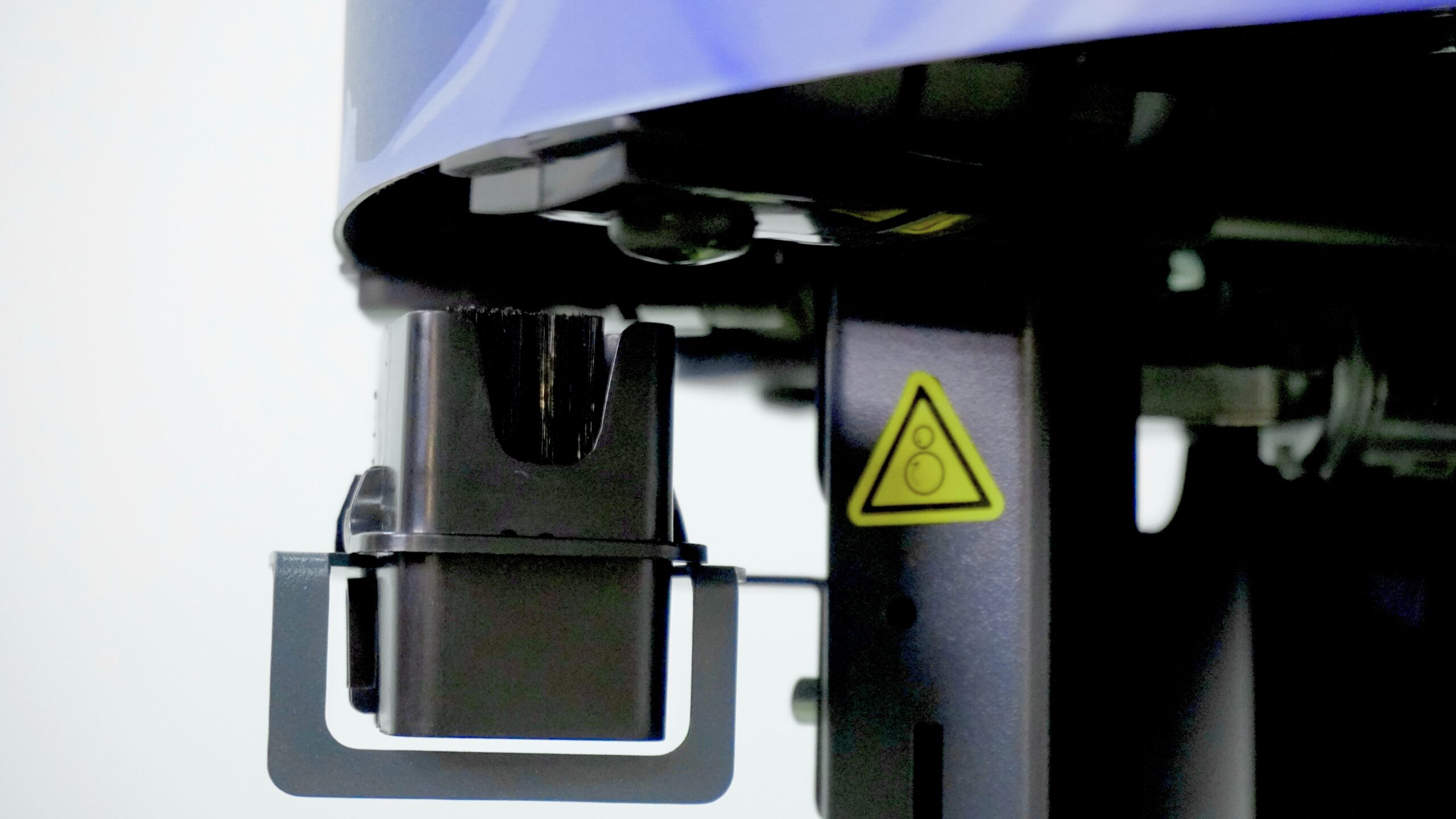

  • Accurate, repeatable dispensing with patented airtight nozzle valves and piston pump precision down to 0.077 ml to eliminate mistints and drying

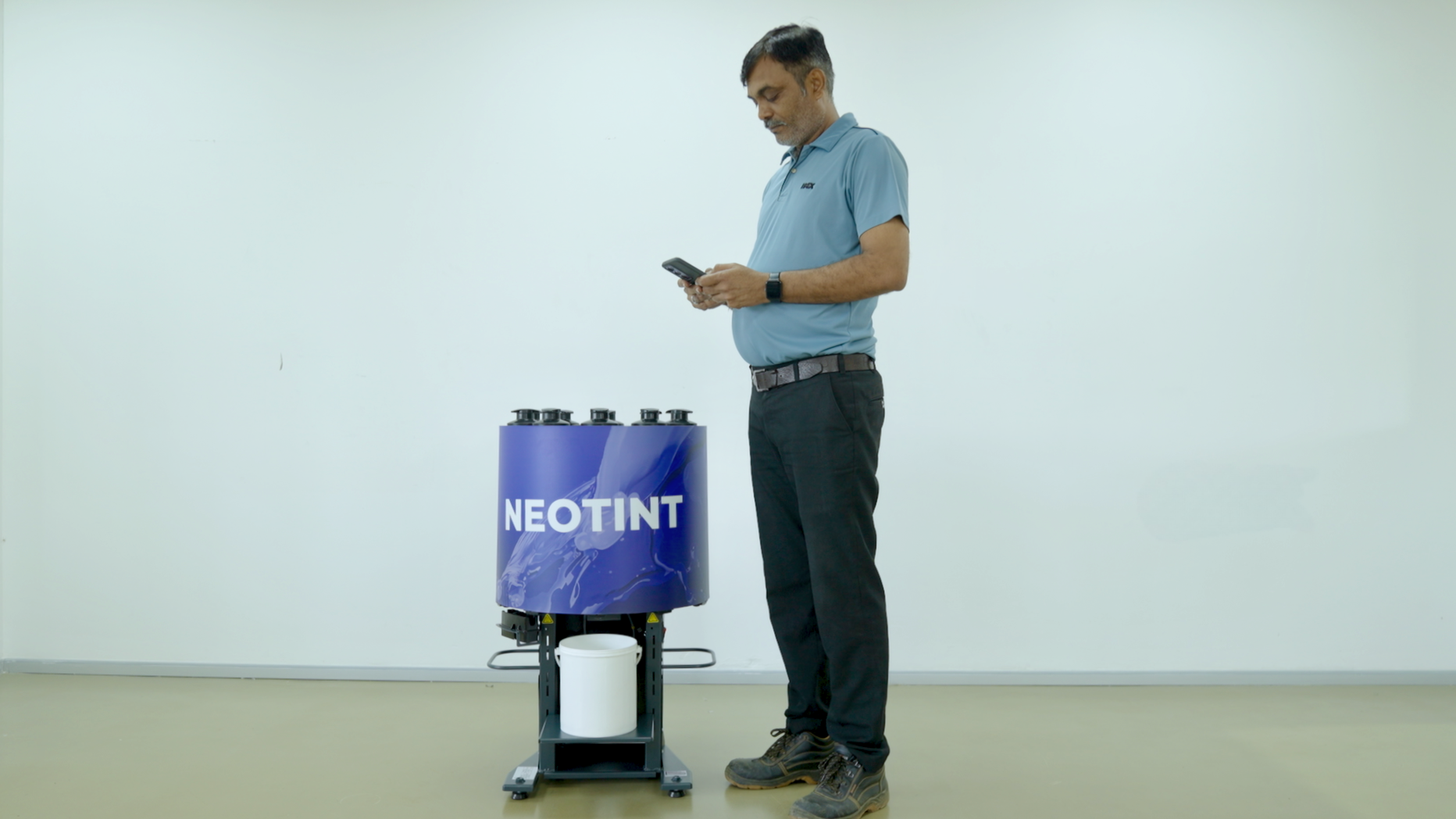

  • Flexible digital control supporting operations via mobile, tablet, laptop, or desktop PC
  • Robust, store-ready build engineered to be dust-proof, rodent-proof, and flood-resistant up to 40 cm

General

  • Automatic sequential
  • Colorants: Universal, Water based, Solvent based

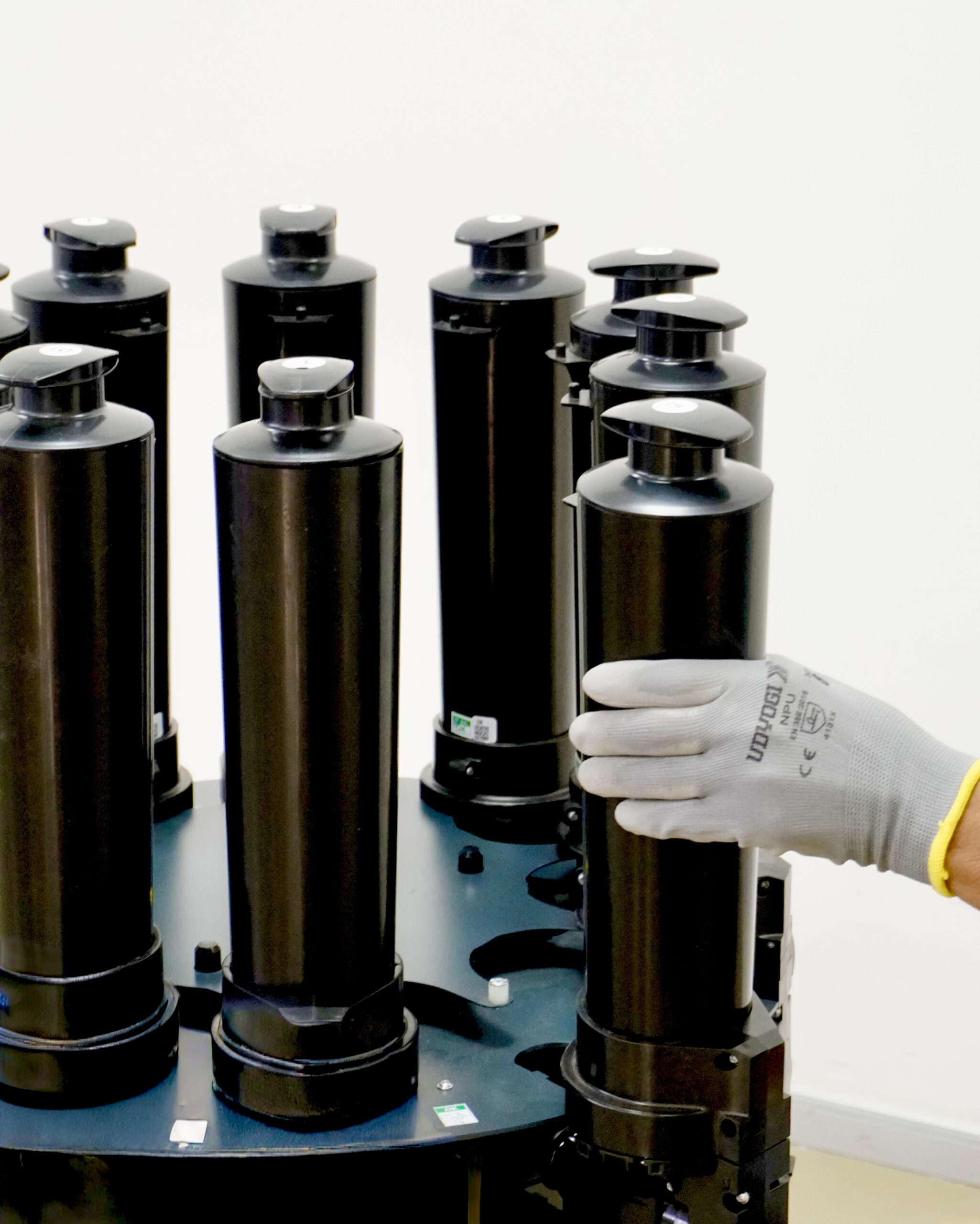

Canisters

  • up to 10 Canisters
  • Sizes: 1.3L

Pump

  • Patented Piston Pump
  • Minimum dispense: up to 0.077 ml
  • Pump size: 43 ml
  • Maximum Flow Rate: 250 ml/min
  • One time calibration. Lasts machine lifetime

Can Table

  • Optical can sensor
  • Max. can height: 40 cm
  • Dispense tray: Manual

Dimension & Weight

Net dimensions HWD: 92.5 x 58 x 57 cm
Net weight: 46 kg
Packaging Dimensions HWD: 79 x 64 x 89 cm
Packaging weight: 57 kg
Footprint: Less than 2.5 sq. ft.

Brush

Rotary Brush
Screw Mounted Brush Assembly
Brush container material: PP/POM

Options

TI Dispense Desktop, TI Dispense Mobile
Mode of Operation: Mobile, Tab, Laptop, PC

Order options and accessories to personalise your machine to your specifications. Factory-installed options come pre-built into your machine, while accessories are supplied separately and can be mounted during or after installation.
