HA680 Automatic Paint Dispenser

Heavy-duty design
Harbil® ZeroPurge™ piston pump
High capacity

Designed for high-turnover locations, the HA680 delivers optimal workflow with its large capacity and enhanced dispense speed. Equipped with ZeroPurge™ piston pump and AutoDrive™ technology, it ensures efficient, reliable, and future-ready performance for demanding operations.

Request Information

Find a Distributor

Heavy-duty design
Harbil® ZeroPurge™ piston pump
High capacity

Request Information

Find a Distributor

Features

Sequential dispensing
ZeroPurge Piston pump technology
16-36 POM/SST canisters in 3/6/10/20 l size
Universal, solvent and water based colorants
Pump sizes: 100 ml / 300 ml
Flow rate: 0.8 – 1.0 l/min (100 ml), 1.5 – 2.0 l/min (300 ml)
Smallest dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
Operator display
Electric can table
Brush monitor
Electric punch (optional)
Heating set (optional)
Low/high model
HWD 151x115x125 cm (low model)
HWD 171x115x125 cm (high model)

General

Automatic sequential
HA680 Solvent based, water based, universal and biocide-free

Canisters

Up to 16 – 36 canisters
Material: polymeric/stainless steel (optional)
Canister sizes 3/6/10/20 l

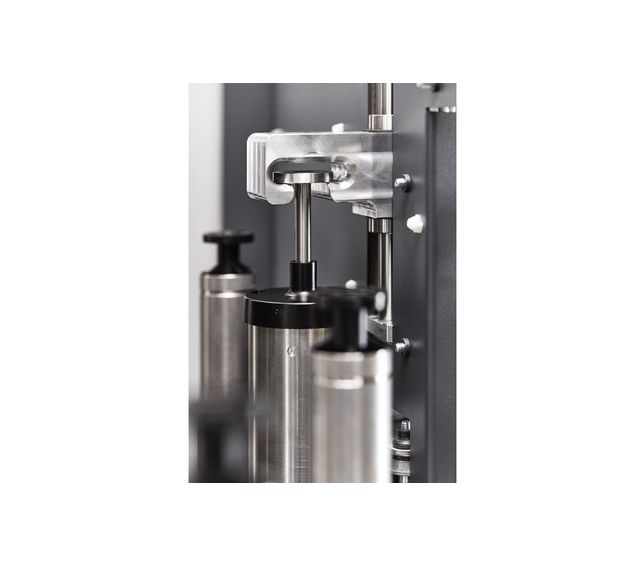

Pump

Harbil® ZeroPurge™ Piston pump
Pump sizes: 100 ml/300 ml
Flow rates: 0.8 – 1.0 l/min (100 ml), 1.5 – 2.0 l/min (300 ml)
Min. dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
Nozzle diameter: 2/4/6 mm
Stainless steel ball valve
Seals material: Teflon / Viton extreme / Viton
ZeroPurge™
Copied calibration – no recalibration required

Nozzles

Air tight – integrated nozzle closures
Nozzle cleaning system: brush monitor

Can Table

Electric Lift
Dimensions: 44 x 31 cm
Loading height: 39 cm (Low model) / 55 cm (High model)
Max. can height: 42 cm (Low model) / 46 cm (High model)
Optical can sensor / Short Range sensor (optional)

Dimension & Weight

HWD 151x115x125 cm (low model)
HWD 171x115x125 cm (high model)
Filling height:
140 cm (Low model)
112 cm from step (Low model)
160 cm (High model)
132 cm from step (High model)
Packaging dimension: 192 x 126 x 148 cm
Weight – Net/Gross 307 – 357 kg / 360 – 410 kg

Power Supply & Safety

110V +/- 10%, 50Hz/60Hz
230V +/- 10%, 50Hz/60Hz
CE certified, UL-approved

Brush

Material: polymeric / Stainless steel (optional)

Options

Electric punch 46 mm, heating set, rollerbed on can table, large can table plate, different colours (RAL).

When you order options or accessories, they both allow you to personalize your machine to your specifications. Options are
factory-installed features and you will find them built into your machine when it arrives. Accessories are supplied separately and
have to be mounted during or after the installation.

Below find the list of available options & accessories for this product.
